MicrUs
Pocket-size Ultrasound Scanner

MicrUs is the portable solution for high quality ultrasound scans, anywhere. With its pocket size, USB power supply and advanced imaging techniques, it ensures detailed images for various applications.

MicrUs Scanner

in breve

Ultra-light Scanner

A next-generation pocket-sized ultrasound scanner for point-of-care, fanless and USB-powered.

Quality Images

High-quality ultrasound screenings for various diagnostic applications, thanks to the wide range of available transducers.

Software Excellence

The Echo Wave II software is designed to provide a comprehensive suite of diagnostic tools and offers free updates.

SDK & Research Options

The MicrUs offers optional features for research and development, such as a software development kit and an I/O module for synchronization.

Ultra-Portable USB Ultrasound Scanner

\
USB Interface and Power Supply

Designed for maximum portability and convenience, this pocket-sized ultrasound scanner eliminates the need for an external power supply. It is powered directly via a USB port, reducing clutter and making it easy to use in any clinical setting.

\

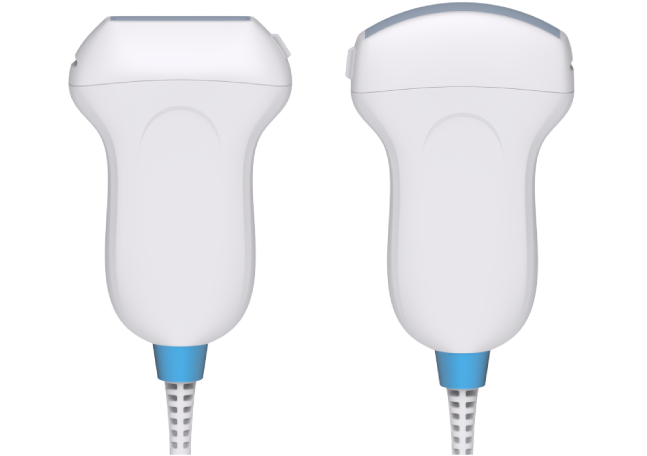

Wide Range of Interchangeable Transducers

Advanced probe recognition technology allows for connecting and disconnecting various transducers in seconds. This feature enables quick transitions between different clinical applications, enhancing efficiency during diagnostic procedures.

Immagine ecografica eseguita con ecografo portatile MicrUs EXT con sonda Micro Convex collegato a tablet.

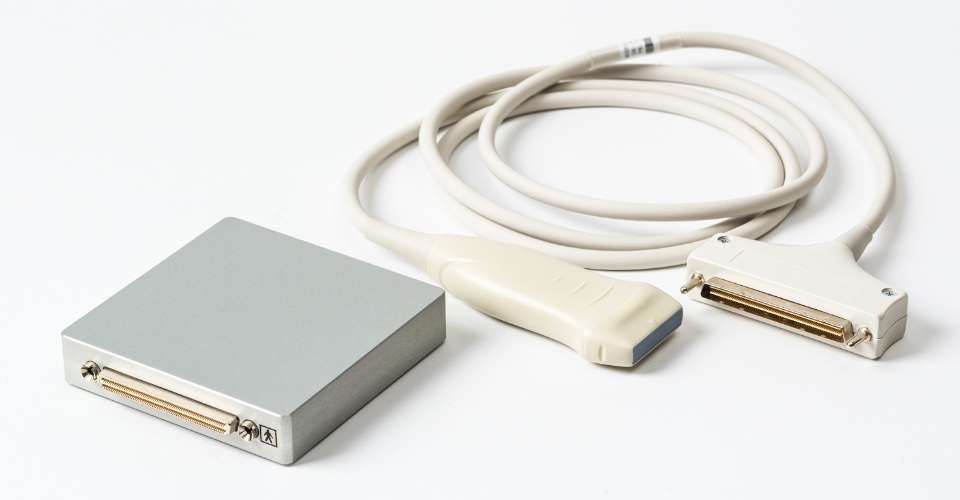

Ecografo MicrUs EXT e sonda ecografica lineare da 15 MHz.

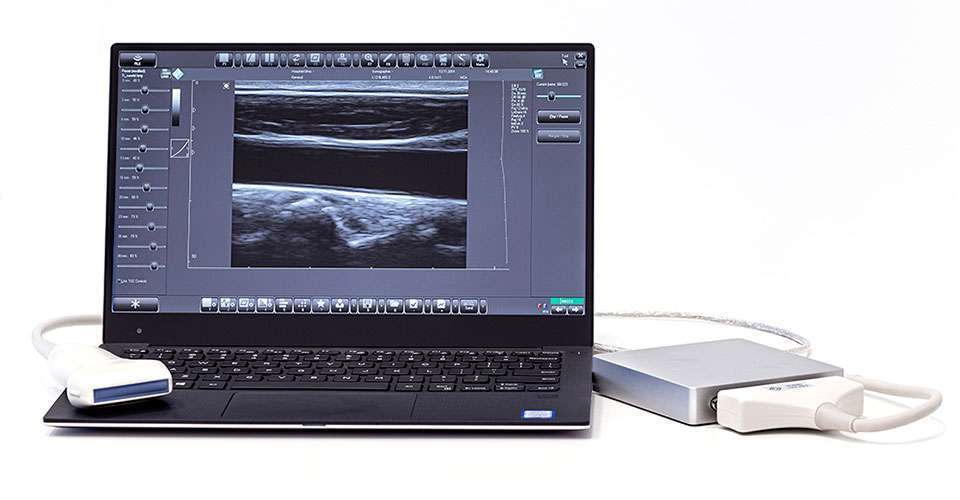

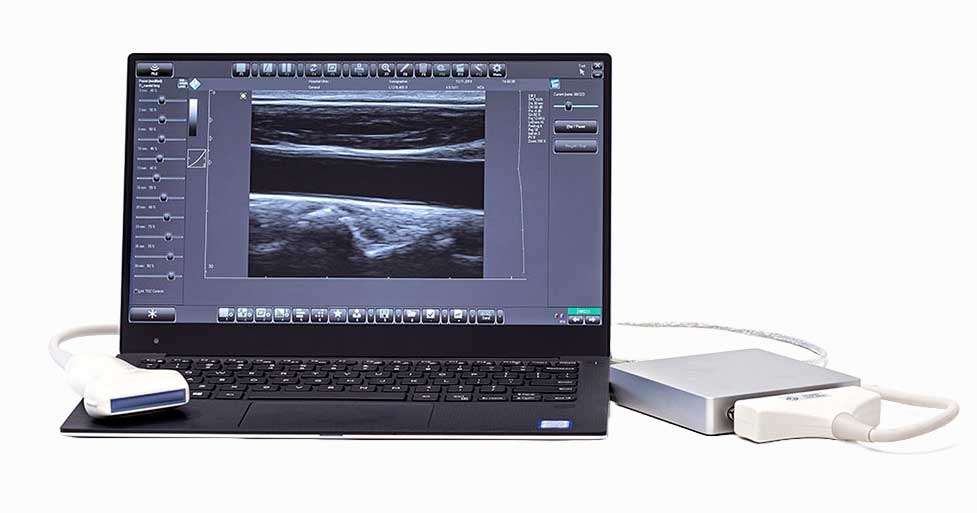

Ecografo portatile MicrUs EXT con computer e sonda lineare.

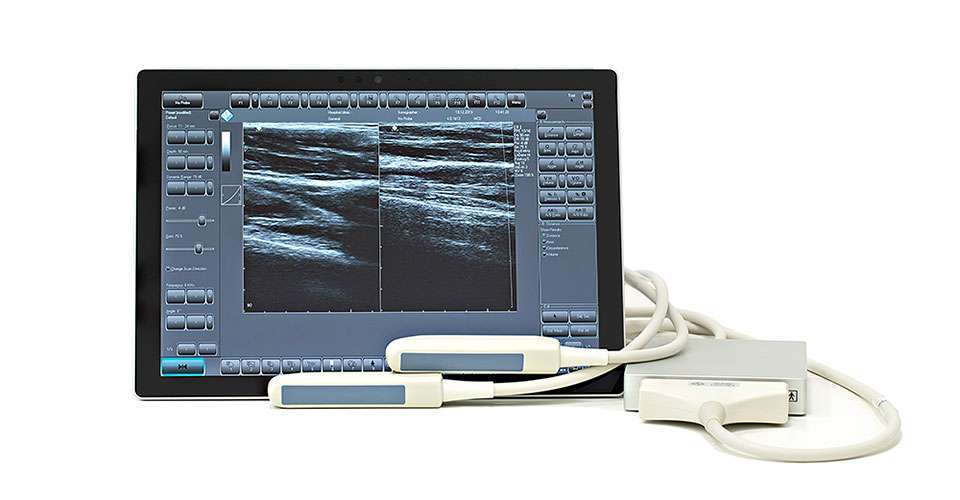

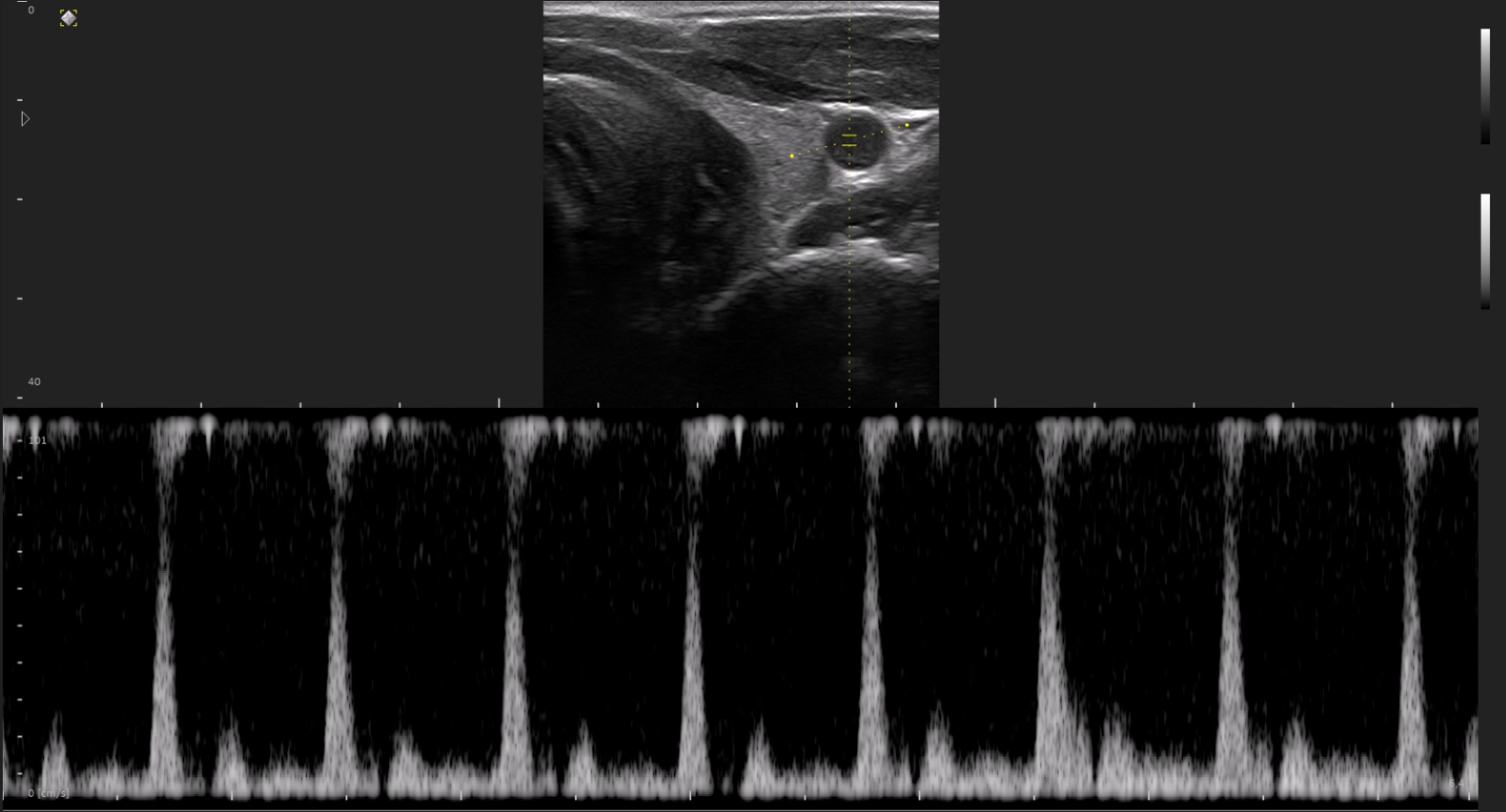

Doppia immagine ecografica real-time sul computer tramite ecografo portatile MicrUs EXT con doppia sonda.
\
Software for Multiple Devices

Versatile software that can be installed on multiple Windows and Android devices at no additional cost. Software updates are free, helping to reduce maintenance costs and ensuring access to the latest features and improvements.

\

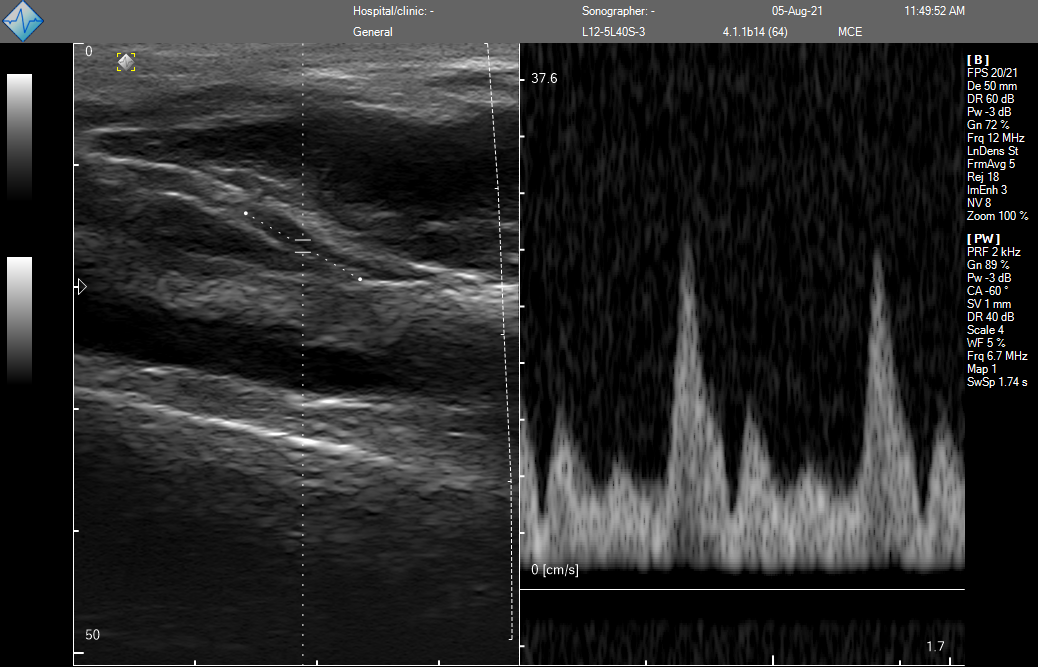

Pulsed Wave Doppler, Spatial Compound, B-steer, Wide View, Speckle Reduction

High-quality ultrasound screenings in B, M, B+M, 4B, PW Doppler, and PW Doppler+B (duplex) modes with Speckle Reduction Processing, Trapezoid, and Spatial Compound Imaging.

MicrUs in action.

Get incredible details for your specialty. With the powerful technology and carefully designed circuit boards of the MicrUs Ext-1H, you have the power of a high-performance ultrasound at your fingertips.

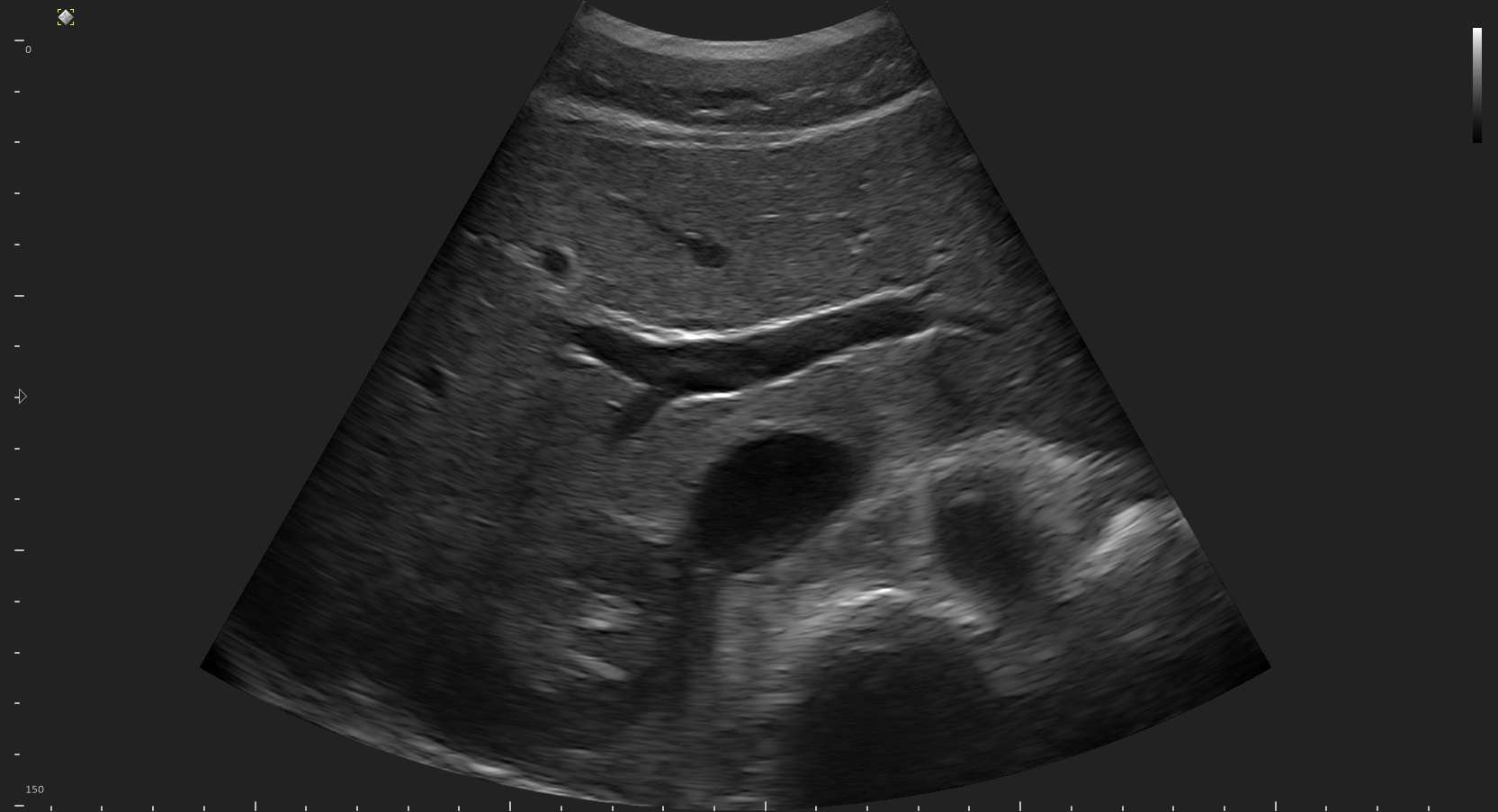

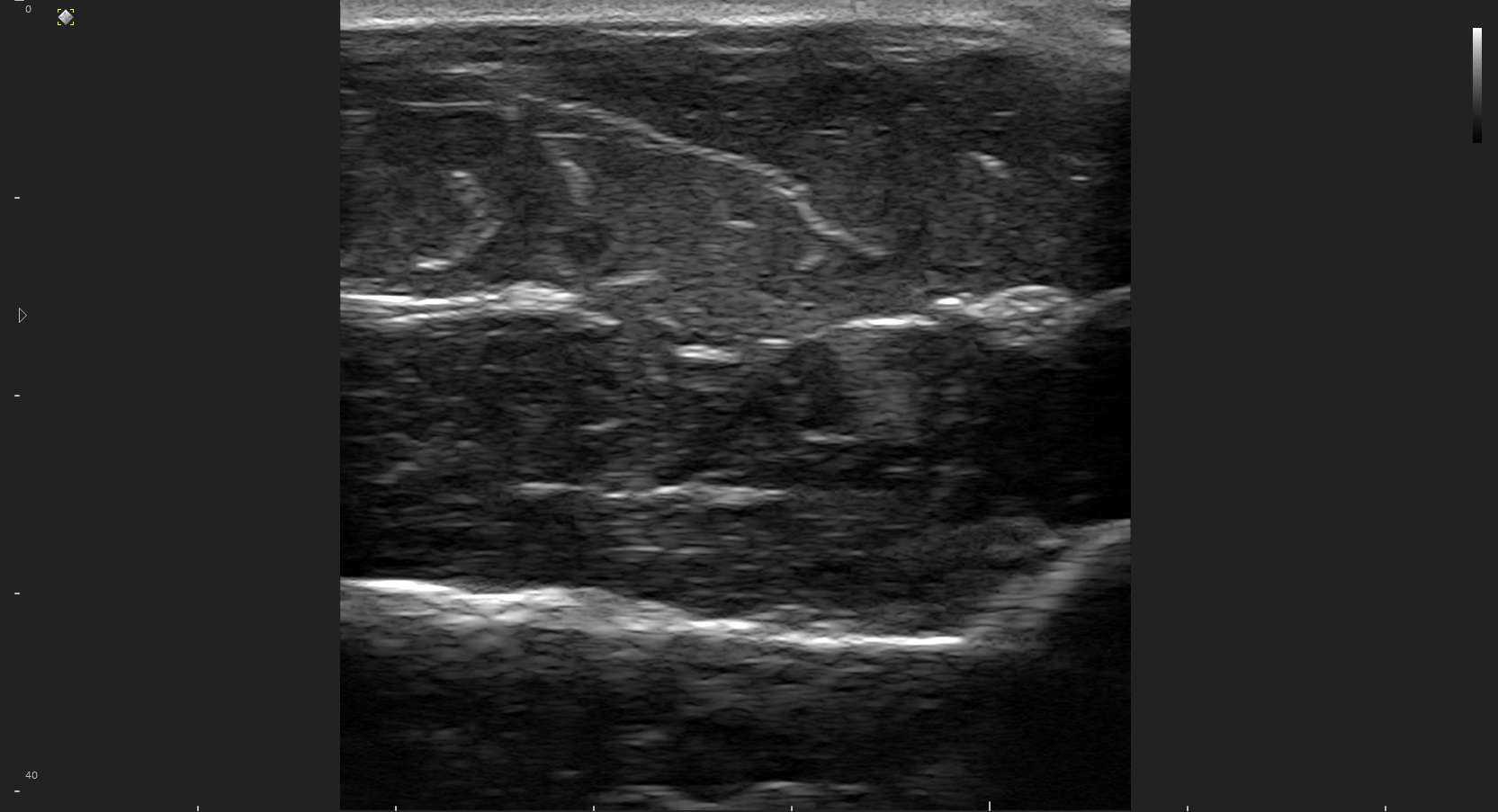

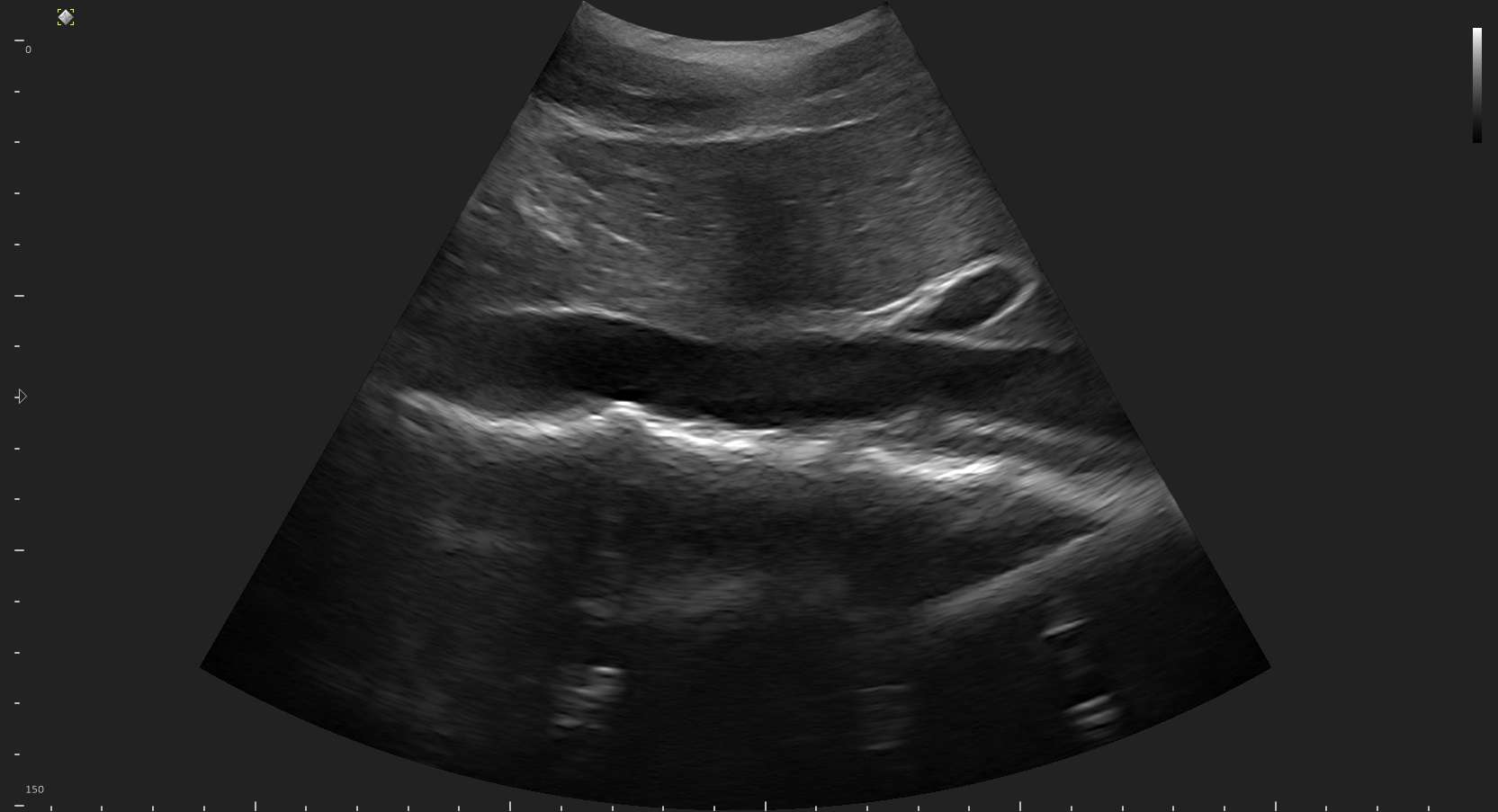

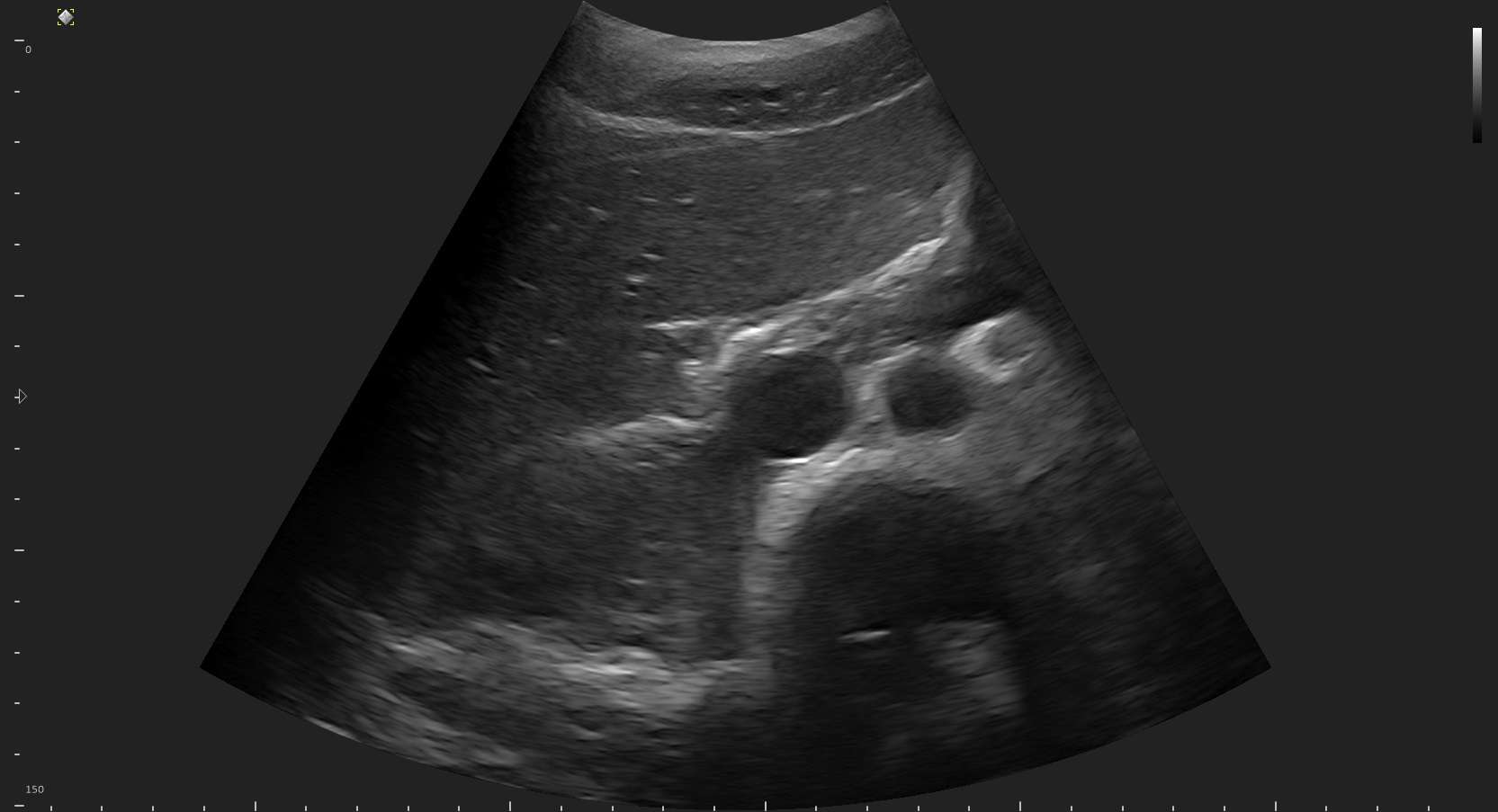

Abdomen MicrUs Micrus pro MSK Micrus pro PWD Micrus Pro Kidney B+B mode thyroid ultrasound image MicrUs Pro Liver MicrUs Carotid MicrUs Carotid ultrasound longitudinal  ultrasound image using MicrUs Pro Tendon ultrasound image Pulsed Wave Doppler on a vessel using MicrUs EXT Abdomen Ultrasound MicruS pro

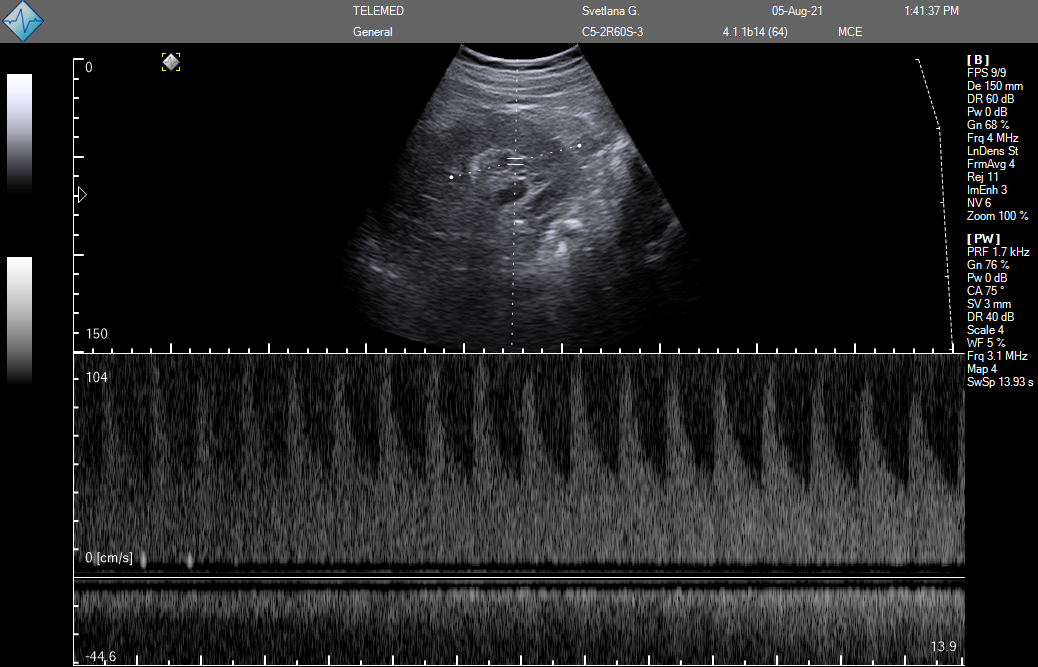

Kidney ultrasound image using MicrUs Scanner Pulsed Wave Doppler on a vessel thyroid ultrasound image Kidnew PWD Micrus Pro Micrus Pro Abdomen Ultrasound Image MicrUs PWD (2) Vessel valves ultrasound image kidney PWD ultrasound

Models

MicrUs EXT-1H

Portable Multidisciplinary Ultrasound

Features

Probe connectors

One probe port

Product support

Warranty

MicrUs: 2 Years – Probes: 1 Year

DICOM

Scanning Modes

B-Mode / M-Mode

Pulsed-Wave Doppler

Scanning Software

Echo Wave II – Ultrasound Software

Echo Wave II – Ultrasound Software Touch GUI

Echo Wave A – Android Ultrasound App

Research and Development Tools

SDK – Software Developement Kit

Require NDA

Real-time Imaging for the Research

I/O Module

Optional*

Certifications

CE

FDA

Models

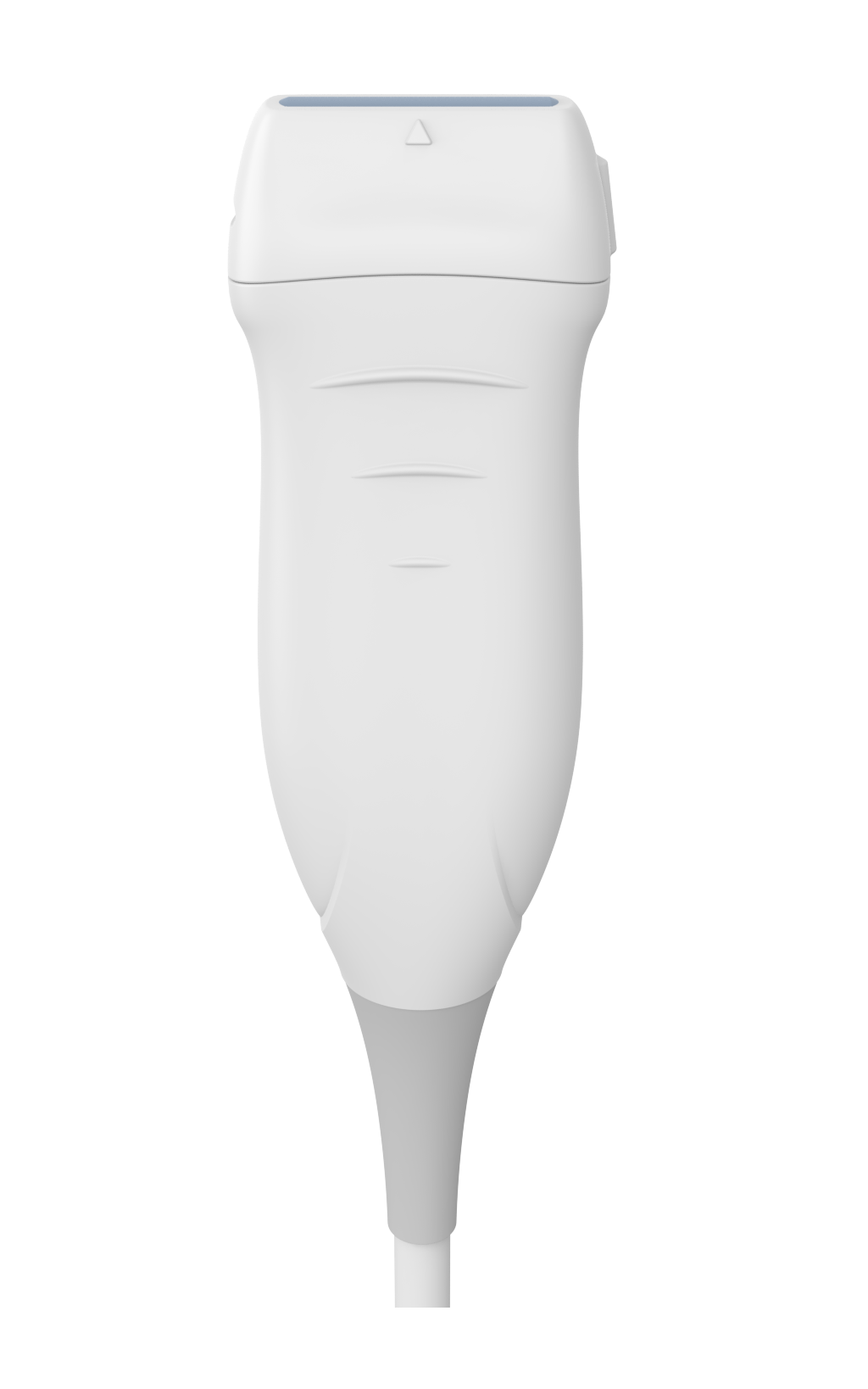

Discover our wide range of available probes

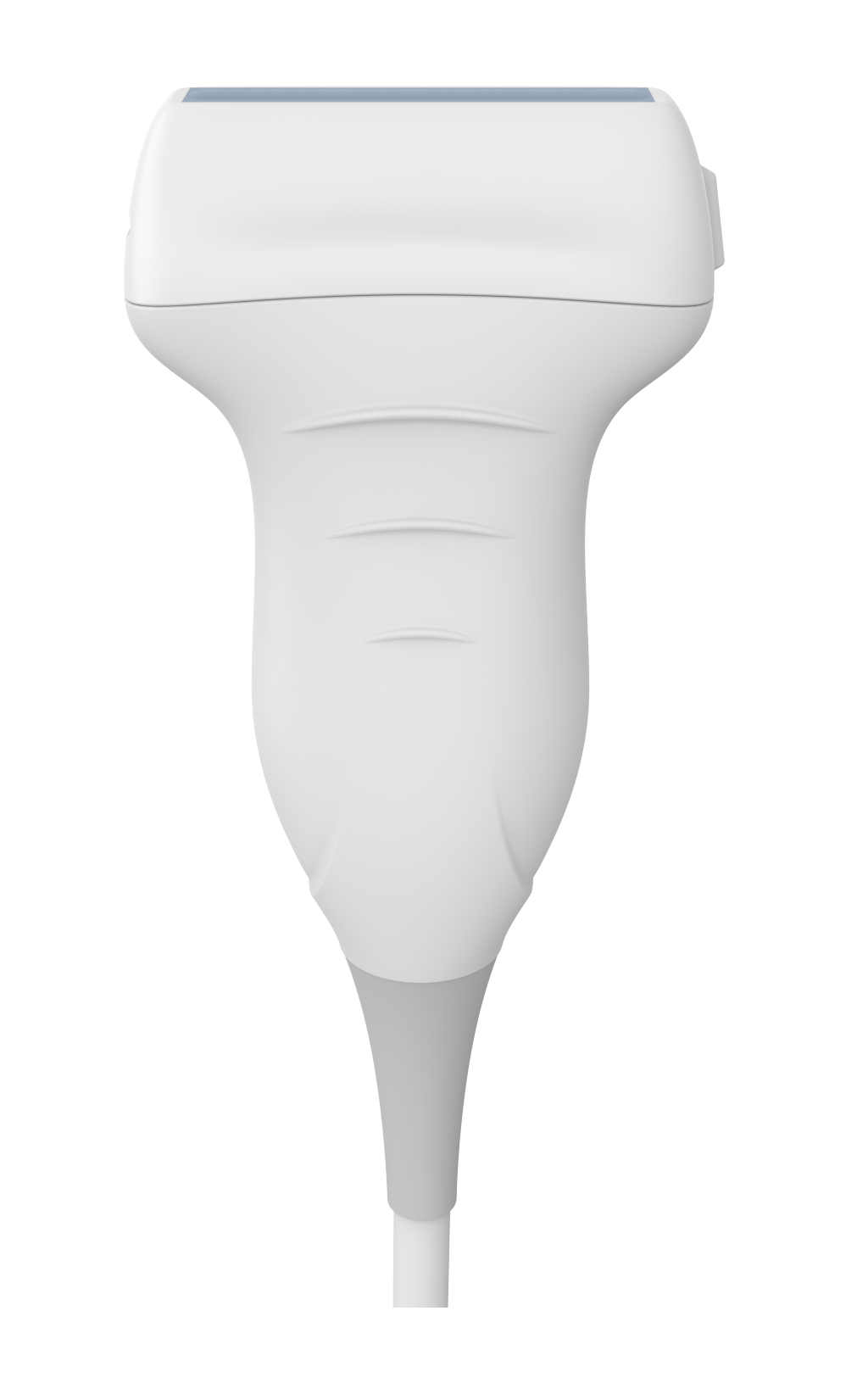

L12-5L40S-3

p

Type: Linear

Frequency range: 5.0 – 12.0 MHz

Field Of View: 38 mm

Applications: Vascular, Small Parts, MSK/Neurol., Pediatrics, Vascular Access

L15-6L25S-3

p

Type: Linear

Frequency range: 6.0 – 15.0 MHz

Field Of View: 24 mm

Applications: Vascular, Small Parts, MSK/Neurol., Pediatrics, Vascular Access

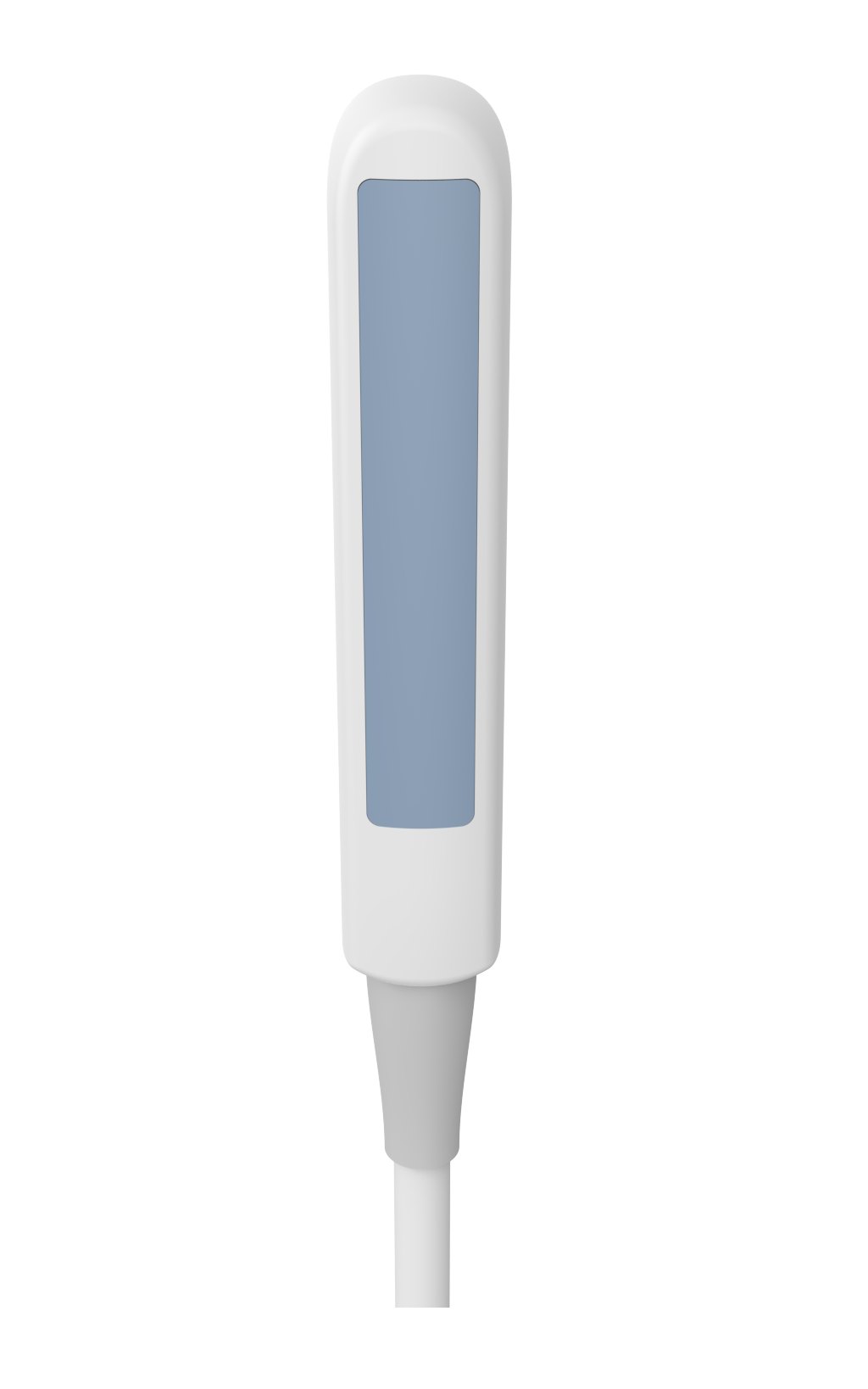

LV8-4L65S-3

p

Type: Linear

Frequency range: 4.0 – 8.0 MHz

Field Of View: 65 mm

Applications: MSK/Neurol.

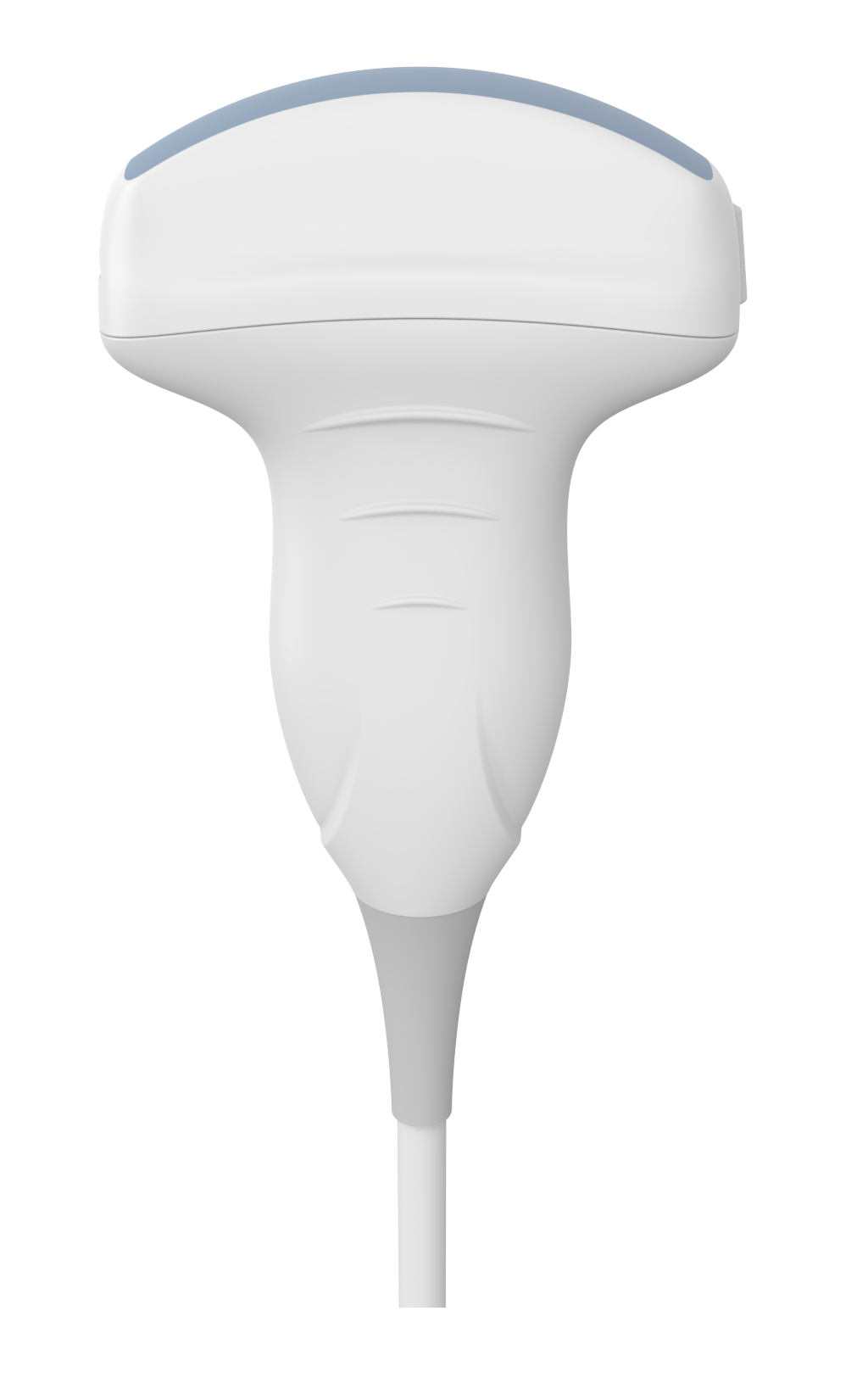

C5-2R60S-3

p

Type: Convex

Frequency range: 2.0 – 5.0 MHz

Field Of View: 60°

Applications: Abdomen, OB/GYN, Pediatrics

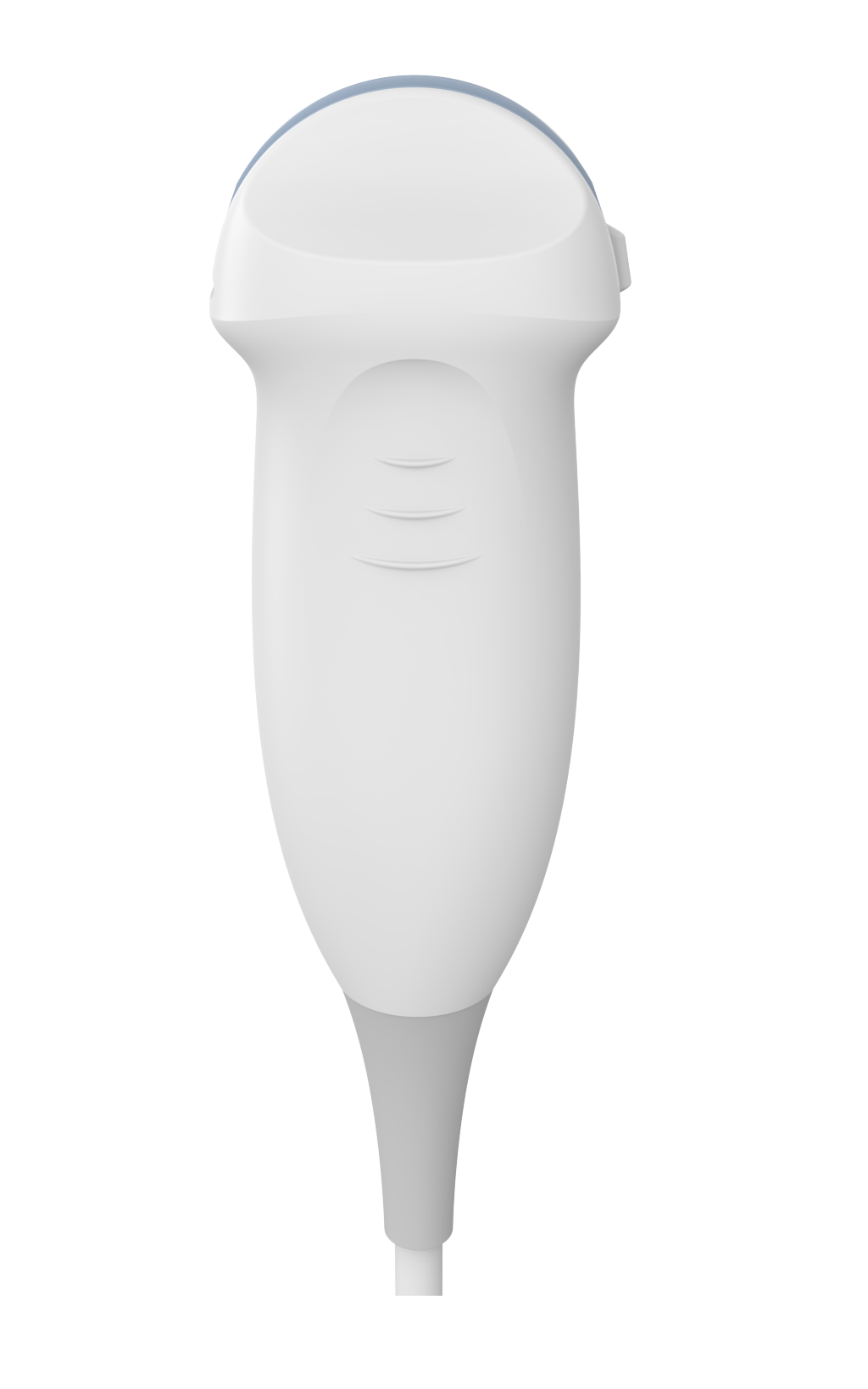

MC8-4R20S-3

p

Type: Micro Convex

Frequency range: 4.0 – 8.0 MHz

Field Of View: 91.7 mm

Applications: Small Parts, MSK/Neurol, Pediatrics

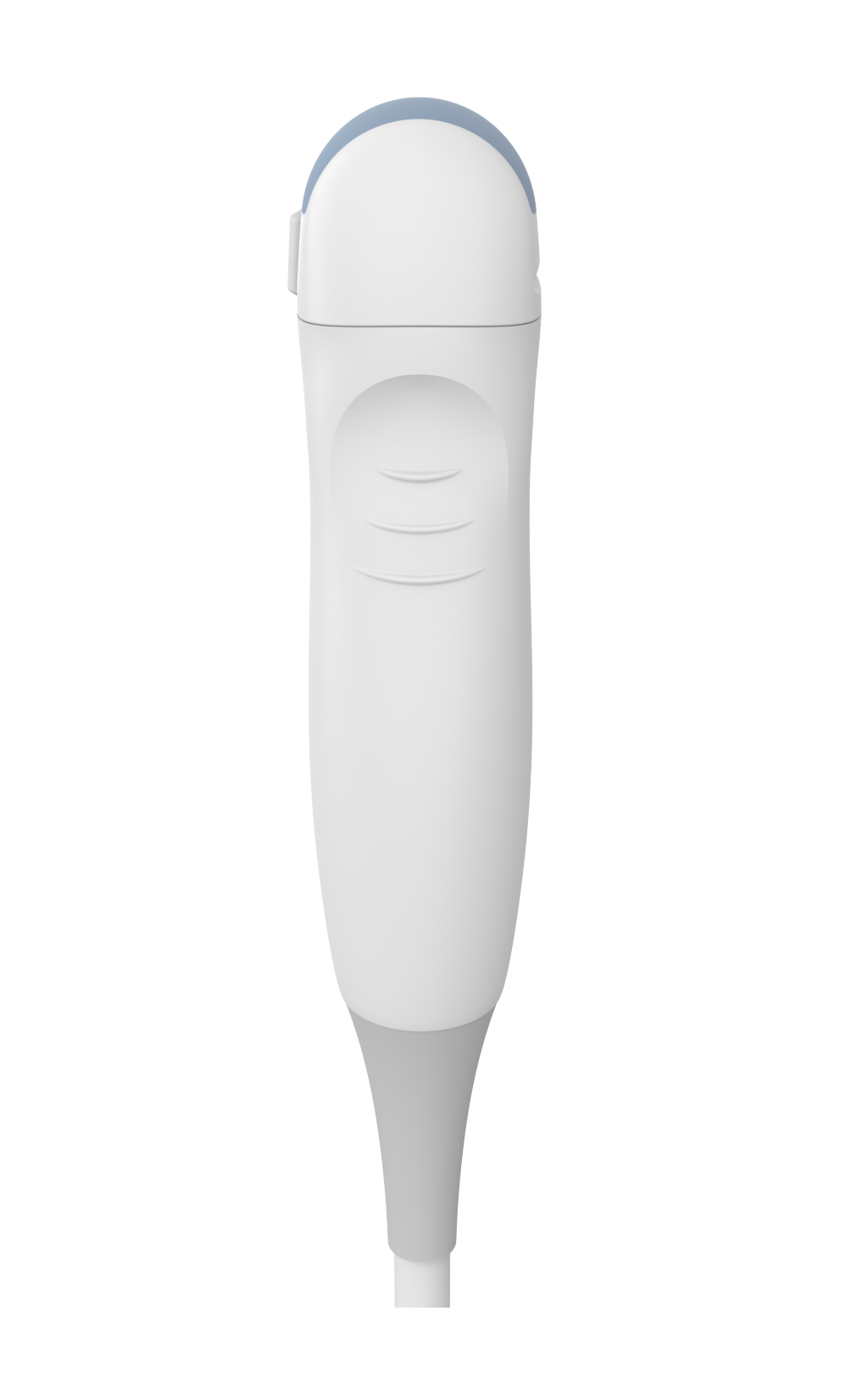

MC10-5R1-S-3

p

Type: Micro Convex

Frequency range: 5.0 – 10.0 MHz

Field Of View: 156°

Applications: Small Parts MSK/Neurol., Pediatrics, Cardiology

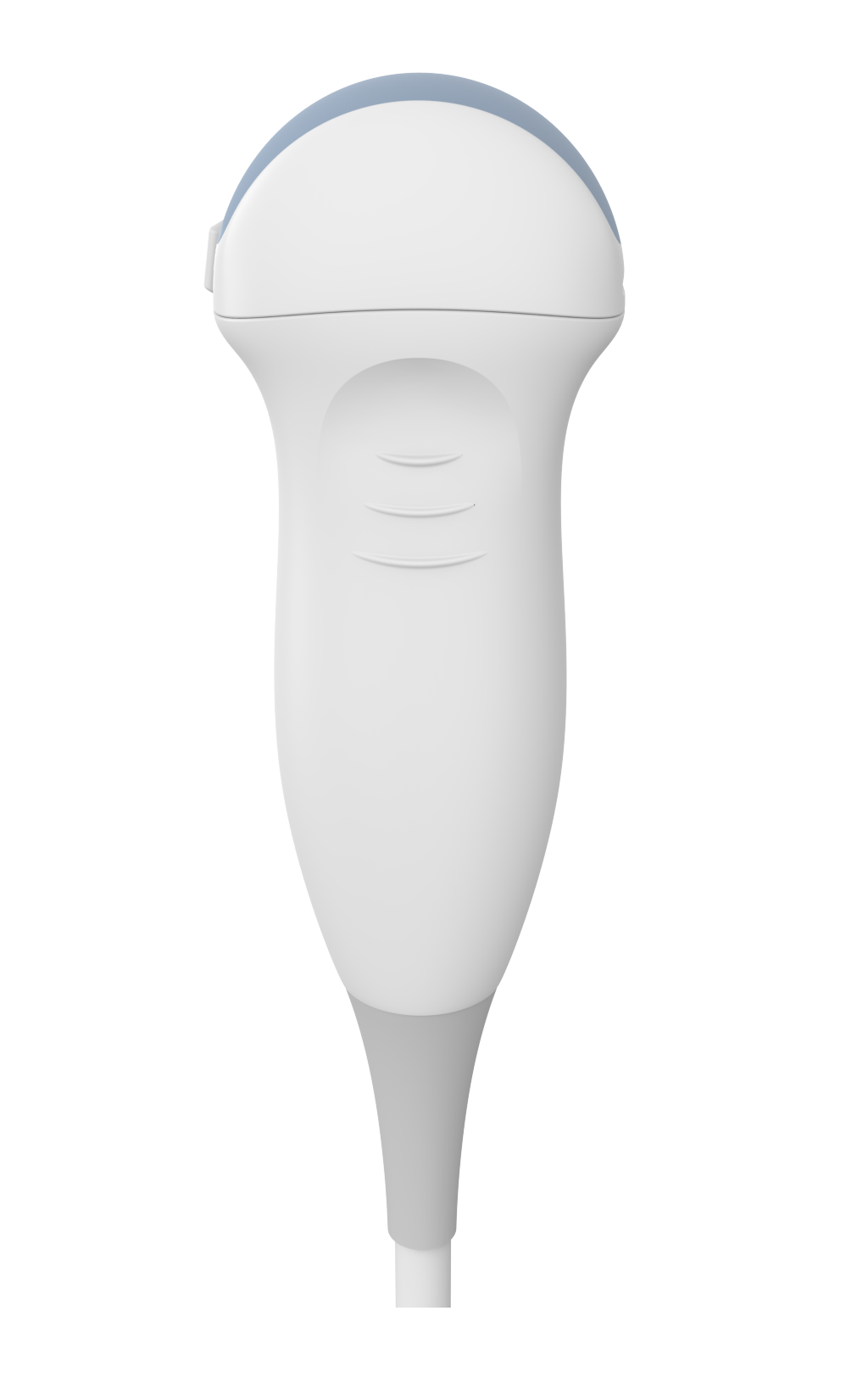

MC4-2R20S-3

p

Type: Micro Convex

Frequency range: 2.0 – 4.0 MHz

Field Of View: 104°

Applications: Abdomen, Pediatrics

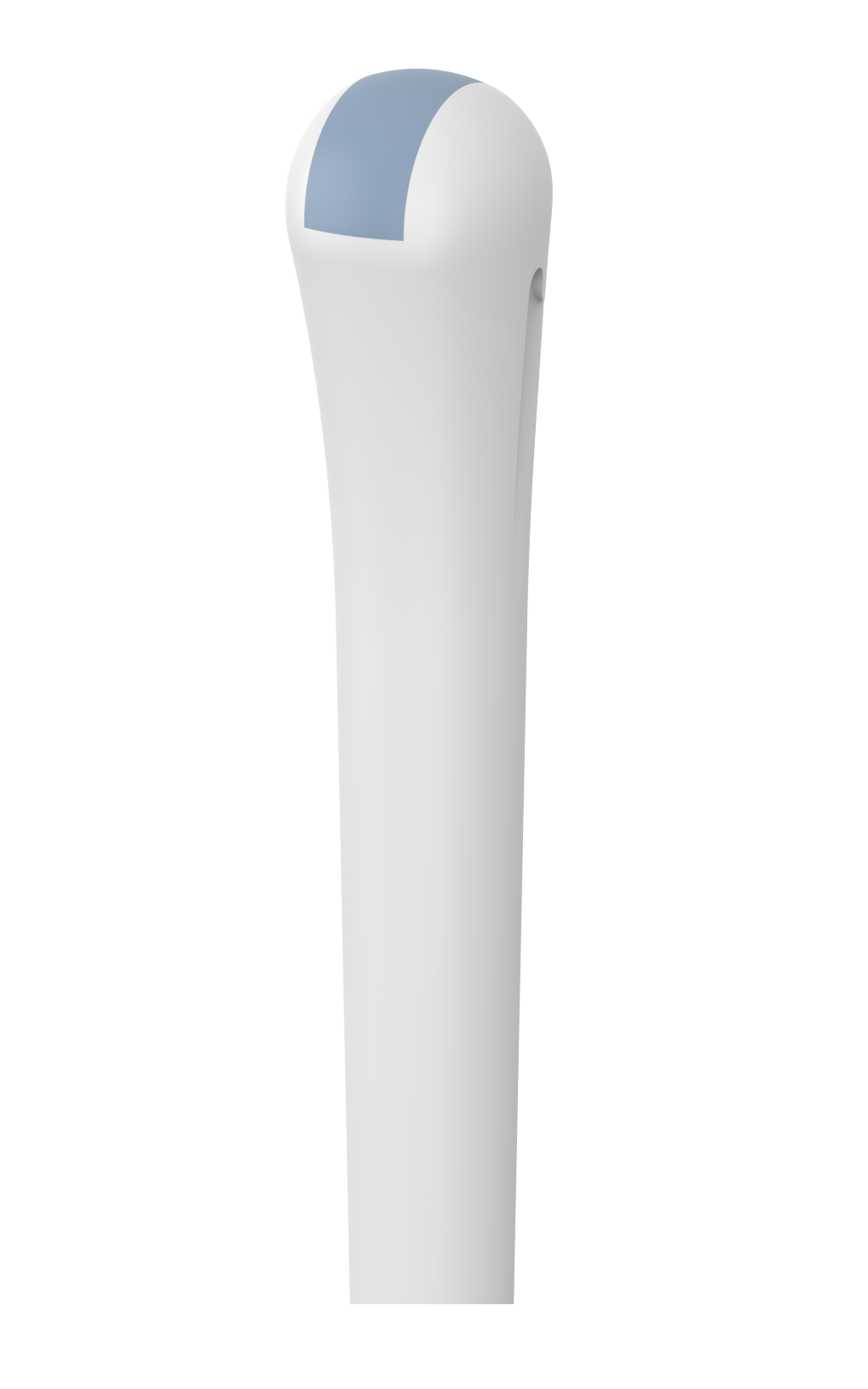

MCV9-5R10S-3

p

Type: End-Fire / Micro Convex

Frequency range: 5.0 – 9.0 MHz

Field Of View: 156°

Applications: Transrectal, Transvaginal

Intuitive, modular, ready-to-use research tools for optimized setup time

Intuitive tools for the Python, MATLAB, and LabView environments, enhanced by detailed documentation and understandable instructions, thus enabling a significant reduction in the learning curve.

DLL for MATLAB and Python

Dynamic link library (DLL) that allows you to call SDK functions and perform real-time image and data acquisition from other programs such as MATLAB, Python, and Labview.DLL for MATLAB and Python.

SDK – Software Development Kit

The Ultrasound Scanning Software Development SDK is a high-level programming library that allows the development of ultrasound scanning software for all TELEMED ultrasound systems on Windows, while on Android it is available for MicrUs and MicrUs Pro systems.

* The SDK package is available for download free of charge, subject of NDA agreement with the Manufacturer

I/O Module

The MicrUs can be equipped with additional connectors for synchronizing the system with other equipment.

*I/O Module is an optional feature.

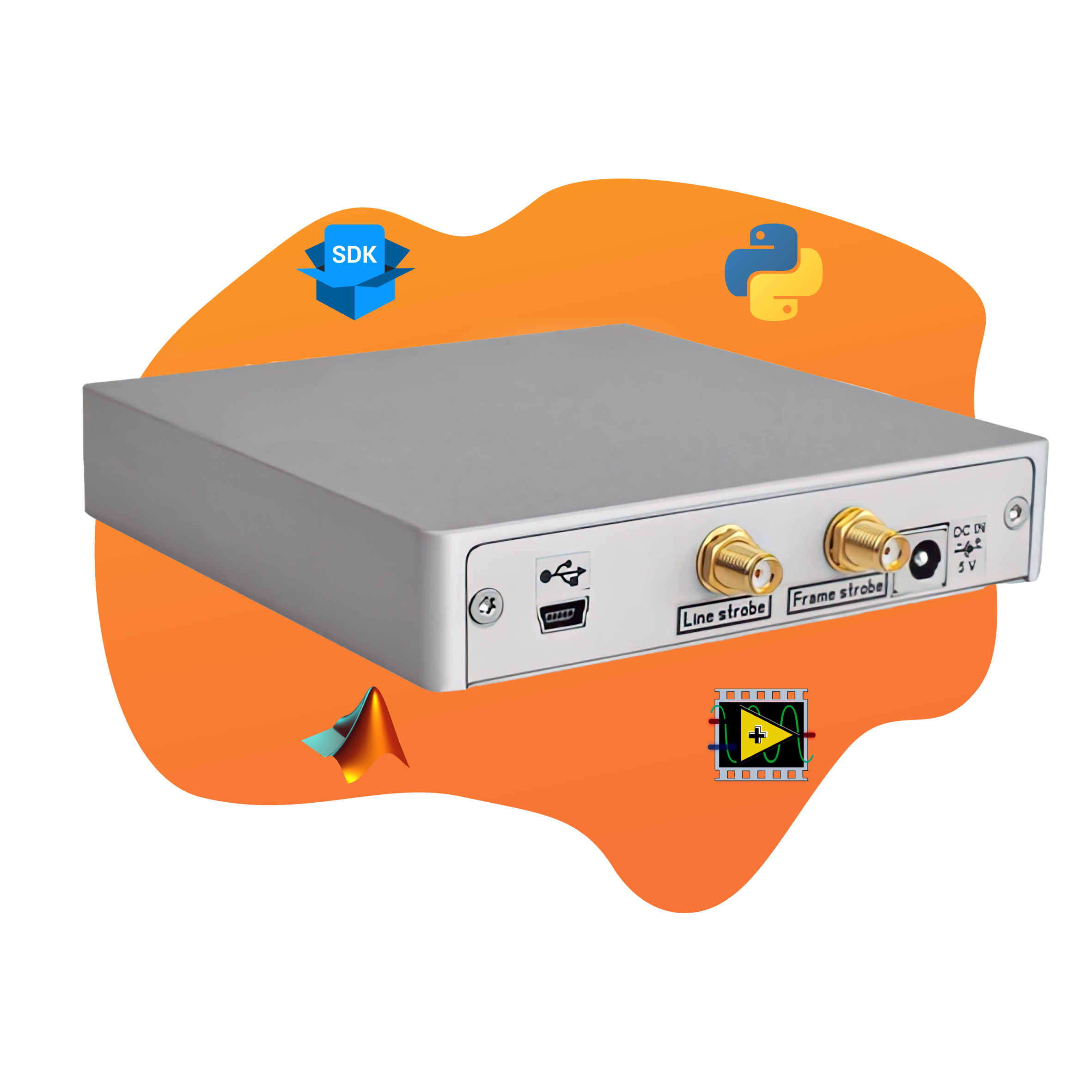

MicrUs EXT-1H con DLL, SDK per acquisizione dati in tempo reale e modulo I/O visibile.

Models

MicrUs EXT-1H: one probe port

Imaging Modes

  • B, B+B, 4B, B+M, M

B-Mode:

  1. B-steer for 40mm or less linear probes
  2. Compound for 40mm or less linear probes
  3. Trapezoid for 40mm or less linear probes
  • Pulsed Wave Doppler (PWD)
  • B+PWD (Duplex)

Connectivity

  • USB 2.0 & 3.0

Transducers

Multi-frequency transducers from 2 to 15.0 MHz – Automatic transducer recognition

  • Linear
  • Convex
  • Microconvex

Duo Probe: multi-frequency probe with dual transducers for two simultaneous scans *custom made probe

Scan depth: 2-31 cm depending on the probe used.

Pulsed Wave Doppler (PWD)

  • PRF values: 1-10 kHz
  • wall filter settings: 16 steps (2%-20% PRF)

Focusing

  • transmit: variable, 8 zones
  • receive: point to point, dynamic

Automatic Image Optimization

  • B-image gain
  • B-image dynamic range
  • B-image TGC sliders

Image Processing - controls

  • lines density control for better resolution
  • TGC Control
  • dynamic range
  • overall gain control
  • M – mode sweep speed control
  • acoustic power control
  • variable frame averaging
  • brightness, contrast
  • advanced gamma control, fixed and custom curves
  • scan direction, rotation, up-down controls
  • negative / positive control
  • bi-linear interpolation
  • echo enhancement control
  • noise rejection function
  • speckle reduction and structure improvement PureView, NeatView, QuickView

DICOM

  • Verification SCU
  • Modality Worklist (MWL) SCU
  • Modality Performed Procedure Step (MPPS) SCU
  • Store SCU (images, video)
  • Print SCU (grayscale, color)

For more information see Echo Wave II Software DICOM Conformance Statement

Functions

  • mouse / trackball / keyboard operation

Image and video save / load:

  • AVI
  • MP4
  • JPG
  • BMP
  • PNG
  • TIF
  • XLSX
  • DCM (DICOM uncompressed)
  • DCM (DICOM-JPEG RGB/YBR)
  • DCM (DICOM-JPEG RGB/YBR Video)
  • TPD (Telemed Picture Data)
  • TVD (Telemed Video Data)
  • unlimited programmable presets for clinically specific imaging
  • vascular puncture guidelines
  • biopsy guidelines
  • brachytherapy/biopsy grids
  • anatomical icons with transducer position indicator
  • direct e-mail sending with image or video attachment via Internet
  • DICOM file push to server
  • printing on system printer
  • TV output via computer display adapter
  • multi-monitor support
  • full screen and window mode
  • LB-2 keyboard (optional) support

User Interface

  • the set of predefined skin schemes for software interface
  • the set of predefined buttons images

Multilanguage support, languages:

  • Chinese
  • English
  • French
  • German
  • Italian
  • Korean
  • Lithuanian
  • Magyar
  • Polish
  • Romanian
  • Russian
  • Spanish
  • B+M, B+PW/CW layout position, size
  • ultrasound area size
  • font size

General Measurements & Calculations

B and Color Doppler mode general measurements and calculations:

  • Distance
  • Length (method: 1 trace)
  • Area, Circumference (methods: 1 ellipse, 1 trace, 1 distance)
  • Volume (methods: 1 distance, 2 distances, 3 distances, 1 ellipse)
  • Angle (methods: 2 distances, 3 distances)
  • Stenosis % (methods: 2 distances, 2 ellipse or trace areas)
  • A/B Ratio (methods: 2 distances, 2 ellipse or trace areas, 2 ellipse or trace circumferences)

M mode general measurements and calculations:

  • Distance, Time, Velocity
  • Heart Rate (methods: 1 beat, 2 beats)
  • Stenosis % (method: 2 distances)
  • A/B Ratio (methods: 2 distances, 2 times, 2 velocities)

PW Mode Human Cardiology Measurements and Calculations

  • Left Ventricle: LVOT Diam, LVOT VTI, LVOT Vmax, SV (Stroke Volume), SI (Stroke Volume Index), CO (Cardiac Output), CI (Cardiac Index), dP:dt (Delta Pressure : Delta Time), MPI (Left Ventricle Myocardial Performance Index)
  • Mitral Valve: MVA(PHT) (Mitral Valve Area using Pressure Half Time), MVA using Continuity Equation (LVOT Diam, MV VTI; LVOT Diam, MV Vmax), dP:dt, E/A ratio
  • Aortic Valve: AVA (Aortic Valve Area) using Continuity Equation (LVOT Diam, AV VTI; LVOT Diam, AV Vmax), AVI (Aortic Valve Index), DPI (Dimensionless Performance Index), AV PHT (Aortic Valve Pressure Half Time)
  • Right Ventricle: RVOT Diam, RVOT VTI, RVOT Vmax, dP:dt, RV MPI (Right Ventricle Myocardial Performance Index), MPAP (Mean Pulmonary Artery Pressure)
  • Tricuspid Valve: TVA (Tricuspid Valve Area) using Continuity Equation (RVOT Diam, TV VTI; RVOT Diam, TV Vmax); TV E/A ratio, TV PHT
  • Pulmonic Valve: PVA (Pulmonic Valve Area) using Continuity Equation (RVOT Diam, PV VTI; RVOT Diam, PV Vmax), PVI (Pulmonic Valve Index), DPI (Dimensionless Performance Index), PV PHT (Pulmonic Valve Pressure Half Time)
  • Pulmonary Vein: Hepatic Vein
  • Shunts: Qp:Qs (Pulmonary-Systemic Flow Ratio)

Human Measurements and Calculations Package

Human General

  • Measurements: the same as general measurements of different modes (B, M, PW)
  • Calculations: BSA via Height and Weight, BSA via Weight
  • PW Mode calculations: HR, SV using Flow Area, SV using Flow Diameter, SI, CO, CI, Area calculation using Continuity Equation (methods: Area and VTI, Area and Velocity, Diameter and VTI, Diameter and Velocity, Velocity Ratio (S/D, D/S), dP:dt, Flow Volume (methods: Diameter, Area), PHT, MVA

Human Musculoskeletal

  • Hip Angles (α, β), Femoral Head Coverage (FHC)

Human Obstetrics / Gynecology (OB / GYN)

  • Measurements: LMP (entered or from calendar), AC, BPD, FL, HC, FTA, AAPD, ATD, TAPD, TTD, CRL, GS, HL, TL, UL, OFD, BOD, Cereb, Clav, Rad, AFI, FHR, NT
  • Doppler mode measurements: Umbilical Artery (UA): RI, PI, PSV, EDV; Middle Cerebral Artery (MCA): RI, PI, PSV; Ductus Arteriosus (DA): Diam, PSV; Main Pulmonary Artery (MPA): Diam, PSV; Uterine Artery (UtA): RI, PI
  • Doppler mode calculations: Umbilical Artery (UA): PSV/EDV; CPR
  • Estimated date of birth (EDD) calculations: EDD(LMP), EDD(GA), EDD(AUA)
  • Ratios: FL / AC, FL / HC, FL / BPD, HC / AC, CI
  • Estimated Fetal Weight (EFW) calculations: EFW(AC), EFW(AC,BPD), EFW(AC,FL), EFW(AC,HC), EFW(AC,HC,BPD), EFW(FL), EFW(AC,FL,HC), EFW(AC,BPD,FL), EFW(AC,BPD,FL,HC), EFW(BPD,FL,FTA), EFW(BPD,ATD), EFW(BPD,TTD), EFW(BPD,TAPD,TTD), EFW(BPD,FL,TAPD,TTD)
  • Selected EFW values are used for calculation of Average EFW
  • Gestational Age (GA) calculations: GA(AC), GA(BPD), GA(CRL), GA(FL), GA(GS), GA(HC), GA(HL), GA(OFD), GA(TL), GA(UL), GA(HC/AC), GA(FTA),GA(ATD), GA(TAPD), GA(TTD), GA(BOD), GA(Cereb), GA(Clav)
  • Fetal Growth estimation (trending): AC(GA), BPD(GA), CRL(GA), FL(GA), GS(GA), HC(GA), HL(GA), OFD(GA), TL(GA), UL(GA), [FL/AC](GA), [FL/HC](GA), [HC/AC](GA), EFW(GA), AAPD(GA), ATD(GA), TAPD(GA), TTD(GA), BOD(GA), Cereb(GA), Rad(GA), Clav(GA), AFI(GA), FHR(GA), NT(CRL)
  • Doppler mode Fetal Growth estimation (trending): UA_RI(GA), UA_PI(GA), UA_RATIO_S_D(GA), MCA_RI(GA), MCA_PI(GA), MCA_PSV(GA), CPR(GA), DA_DIAM(GA), DA_PSV(GA), MPA_DIAM(GA), MPA_PSV(GA), UTA_RI(GA), UTA_PI(GA)
  • Selected Growth Tables are visualized as Fetal Growth Curves
  • Software supports unlimited number of user-defined Growth Tables

Human Gynecology (GYN)

  • Measurements: length, height, width of uterus, cervix, ovaries, renals, follicles
  • Calculations: volumes of uterus, cervix, ovaries, renals, follicles

Human Abdominal

  • Liver: Volume (CC, AP, LL diameters)
  • Gallbladder: Volume, Wall Thickness, Extrahepatic Bile Duct (EBD), Common Bile Duct (CBD), Common Hepatic Duct (CHD)
  • Pancreas: Head Diameter, Body Diameter, Tail Diameter, Pancreatic Duct Head, Pancreatic Duct Body
  • Spleen: Volume (length, width, thickness)
  • Gastrointestinal Tract: Appendix Wall Thickness, Appendix Diameter, Bowel Wall Thickness (at Stomach, Small Bowel, Large Bowel)
  • Urinary Bladder: Volume (length, height, width)
  • Right / Left Kidney: Volume (length, height, width), Pelvis Diameter

Human Urology

  • Measurements: length, height, width of kidneys, bladder, prostate, testes
  • Calculations: volumes of kidneys, bladder, prostate, testes; RUV (Residual Urine Volume); PSAD (PSA Density)

Human Endocrinology

  • Measurements: length, width, thickness of thyroid lobes
  • Calculations: volumes thyroid lobes; volume of thyroid

Human Vascular

  • Distance and area -based stenosis calculations at left (right) Subclavian, CCA (Common Carotid Artery), Bulb, ICA (Internal Carotid Artery), ECA (External Carotid Artery), Vertebral vessels at proximal, middle, distal locations
  • PSV/EDV (Peak Systole Velocity / End Diastole Velocity) ratios for each vessel and location
  • Ratios of velocities ICA PSV/CCA PSV, ICA EDV/CCA EDV, ICA PSV/CCA EDV, ECA PSV/CCA PSV, ECA EDV/CCA EDV, ECA PSV/CCA EDV at Rt. (Lt.) Prox. (Mid., Dist.) locations

Human Cardiology

  • Software supports the following measurements of Left Ventricle, Aortic Valve, Left Atrial: IVSd (Interventricular Septal Thickness, diastole), LVIDd (Left Ventricle Internal Diameter, diastole), LVPWd (Left Ventricle Posterior Wall Thickness, diastole), AOd (Aortic Root Dimension, diastole), IVSs (Interventricular Septal Thickness, systole), LVIDs (Left Ventricle Internal Diameter, systole), LVPWs (Left Ventricle Posterior Wall Thickness, systole), LADs (Left Atrial Dimension, systole).
  • Calculations: HR (Heart Rate), BSA (Body surface Area), Left ventricle volume (methods: Cubed, Teichholz, Gibson, Simpson’s LVAM-LVAP, Simpson’s single plane, Simpson’s biplane, Bullet, Ellipsoid single plane, Ellipsoid biplane), SV (Stroke Volume), SI (Stroke Volume Index), EF (Ejection Fraction), CO (Cardiac Output), CI (Cardiac Index), STIVS (Interventricular Shortening), FS (Fractional Shortening), STPW (Posterior Wall Shortening), LVM (Left Ventricle Cardiac Mass), CMI (Cardiac Mass Index), LA/AO Ratio

Veterinary Calculations Package

Canine OB

  • Measurements: GS, CRL, HD, BD
  • Gestational Age (GA) calculations: GA(BD), GA(CRL), GA(GS), GA(HD)

Feline OB

  • Measurements: HD, BD
  • Gestational Age (GA) calculations: GA(BD), GA(HD)

Ovine OB

  • Measurements: CRL
  • Gestational Age (GA) calculations: GA(CRL)

Bovine OB

  • Measurements: BD, CRL, HD, UD
  • Gestational Age (GA) calculations: GA(BD), GA(CRL), GA(HD), GA(UD)

Equine OB

  • Measurements: AOD, BPD, CRL, EOD, GS
  • Gestational Age (GA) calculations:
  • GA(AOD), GA(BPD), GA(CRL), GA(EOD), GA(GS)

Lama OB

  • Measurements: BPD
  • Gestational Age (GA) calculations: GA(BPD)

Goat OB

  • Measurements: BPD
  • Gestational Age (GA) calculations: GA(BPD) for different species

Animal Cardiology

  • Left Ventricle, Aortic Valve, Left Atrial measurements: IVSd, LVIDd, LVPWd, AOd, IVSs, LVIDs, LVPWs, LADs, ET
  • Calculations: HR, LV volume (Cubed, Teichholz, Gibson), SV, EF, CO, STIVS, FS, STPW, LA/AO, VCF

Reporting

The software includes the reporting and archiving program for data, images, and videos, with creation of the patient file, storage, filing, printing, sending the report by direct-email.
Programming by the operator of the report template with patient data, diagnostic images, measurements and calculations, curves and diagrams, comments, templates, etc.

Power supply

  • directly from USB port (if connected to USB 3.0)
  • external power supply, 100-240V AC, 50-60 Hz (if connected to USB 2.0)

Size & Weight

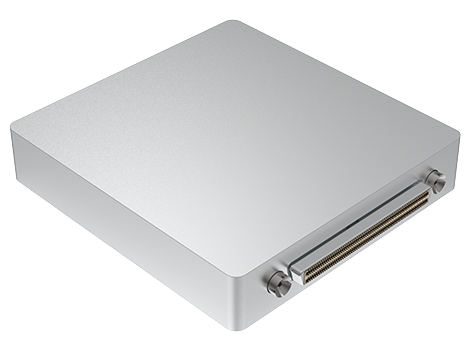

  • MicrUs EXT-1H:
    aluminium enclosure
    dimensions W x D x H, mm: 106 x 105 x 21
    weight, kg: 0.26

Ultrasound software

  • Echo Wave II scanning software / Echo Wave II touch GUI (Windows 32/64 bit)
  • Echo Wave A (Android)

Free downloadable updates.

Research & Development tools

Hardware tools:

  • I/O Module – optional modules for synchronizing the scanner with other signals or instruments such as ECG, EMG, EEG.

Software tools:

  • SDK – Software Developement Kit (windows/android) (available with agreement).
  • Real-time imaging for the research (DLL) – allows to call TELEMED SDK functions to perform real-time ultrasound image data acquisition and imaging from the other programming platforms such as MATLAB, Python etc.
  • MicrUs synchronisation utilities – utility for configuring MicrUs synchronisation port

Recommended configuration

  • Windows® based computer
  • HD/Full HD screen resolution, IPS technology
  • CPU i5/i7/i9 2.0 GHz or faster
  • 8 Gb RAM or more
  • 256 Gb internal Solid State Drive (SSD)
  • ArtUs: USB 3.0, other systems: USB 2.0/USB 3.0
  • Windows® 8/10/11 (all versions 32/64-bit)

Customer Care & Warranty

Remote technical support in real time.

Warranty:

  • MicrUs Beamformer: 2 years
  • Probes: 1 year

MicrUs EXT-1H include:

  • MicrUs EXT-1H beamformer
  • ultrasound transducer (optional)
  • Mini-B to Type-A USB 2.0 cable
  • 100~240 VAC, 50~60 Hz power supply (EN60601-1)
  • software, assembly and set-up manual, operation manual (supplied on USB memory stick)

Models

MicrUs EXT-1H: one probe port

Imaging Modes

  • B
  • B+M
  • M
  • Pulsed Wave Doppler (PWD)
  • B+PWD (Duplex)

Connectivity

  • USB 2.0 & 3.0

Transducers

Multi-frequency transducers from 2 to 15.0 MHz – Automatic transducer recognition

  • Linear
  • Convex
  • Microconvex

Scan depth: 2-28 cm depending on the probe used.

Pulsed Wave Doppler (PWD)

  • PRF values: 1-10 kHz
  • wall filter settings: 16 steps (2%-20% PRF)

Focusing

  • transmit: variable, 8 zones
  • receive: point to point, dynamic

Automatic Image Optimization

  • B-image gain
  • B-image dynamic range
  • B-image TGC sliders

Image Processing - controls

  • lines density control for better resolution
  • TGC control
  • dynamic range
  • overall gain control
  • M – mode sweep speed control
  • acoustic power control
  • variable frame averaging
  • gamma, brightness, contrast control
  • scan direction control
  • negative / positive control
  • bi-linear interpolation
  • echo enhancement control
  • noise rejection function
  • speckle reduction and structure improvement
  • 16 color maps

DICOM

  • Verification SCU
  • Modality Worklist (MWL) SCU
  • Modality Performed Procedure Step (MPPS) SCU
  • Store SCU (images, video)
  • Print SCU (grayscale, color)

For more information see Echo Wave II Software DICOM Conformance Statement

Functions

  • touch screen operation
  • unlimited programmable presets for clinically specific imaging
  • image and video save:
  • JPG
  • MP4

User interface

  • portrait / landscape orientation
  • basic / all scanning controls mode
  • multilanguage support, languages:
  • English
  • Lithuanian
  • Russian
  • Ukrainian

General Measurements & Calculations

B mode:

  • Distance
  • Area
  • Perimeter
  • Volume using ellipse

M mode:

  • Distance
  • Time
  • Velocity
  • Heart Rate using 2 beats

PW mode:

One-point PW measurements and calculations

  • Velocity
  • Pressure Gradient (PG)

Two-points PW measurements and calculations

  • Velocities difference
  • Pressure Gradients (PG) difference
  • Time interval
  • Acceleration
  • Resistivity Index (RI)
  • Heart Rate using 2 beats

Reporting

The software includes the reporting and archiving program for data, images, and videos, with creation of the patient file, storage, filing, printing, sending the report by direct-email.
Programming by the operator of the report template with patient data, diagnostic images, measurements and calculations, curves and diagrams, comments, templates, etc.

Power supply

  • directly from USB-C port (optional cable)
  • Android mobile device battery run time: up to 2 hours

Size & Weight

  • MicrUs EXT-1H:
    aluminium enclosure
    dimensions W x D x H, mm: 106 x 105 x 21
    weight, kg: 0.26

Ultrasound software

  • Echo Wave A (Android)

Free downloadable updates.

Research and Development Tools

Software tools:

  • SDK – Software Developement Kit (windows/android) (available with agreement).
  • Real-time imaging for the research (DLL) – allows to call TELEMED SDK functions to perform real-time ultrasound image data acquisition and imaging from the other programming platforms such as MATLAB, Python etc.

Recommended Mobile Device Configuration

System requirements:

  • Mobile phone or tablet with USB OTG (USB On-The-Go) port (Type-C or Micro USB).
  • Android operating system (versions from 9.0 to 13.0).
  • OpenGL ES 3.2 support.
  • 5-inch 1080×1920 pixels or larger display.
  • Installed “Echo Wave A” software.
  • Connected MicrUs EXT-1H ultrasound scanner with supported probe or MicrUs Pro series USB probe.

 Recommended mobile device characteristics

  • USB port: USB Type-C (USB-C) with OTG (USB On-The-Go) support.
  • CPU: >= 8 cores, >= 2 GHz each core; 64-bit ARMv8 architecture.
  • RAM: >= 4 GB, read performance > 1.5 GB/s, write performance > 1 GB/s.
  • Disk: read performance > 350 MB/s, write performance > 350 MB/s.
  • Battery: capacity as large as possible (e.g., 4000-6000 mAh).
  • Display: 6-inch OLED, 16 million colors, 1080×2340 resolution.
  • Android operating system: Android 9.0 (Pie).
  • OpenGL ES 3.2 support.
  • It is recommended to use mobile device with improved resistance to water and dust.

Customer Care & Warranty

Remote technical support in real time.

Warranty:

  • MicrUs Beamformer: 2 years
  • Probes: 1 year

MicrUs EXT-1H includes:

  • MicrUs EXT-1H beamformer
  • ultrasound transducer (optional)
  • Mini-B to Type-A USB 2.0 cable
  • 100~240 VAC, 50~60 Hz power supply (EN60601-1)
  • software, assembly and set-up manual, operation manual (supplied on USB memory stick)

Models

MicrUs EXT-1H: one probe port

Imaging Modes

  • B, B+B, 4B, B+M, M

B-Mode:

  1. B-steer for 40mm or less linear probes
  2. Compound for 40mm or less linear probes
  3. Trapezoid for 40mm or less linear probes
  • Pulsed Wave Doppler (PWD)
  • B+PWD (Duplex)

Connectivity

  • USB 2.0 & 3.0

Transducers

Multi-frequency transducers from 2 to 15.0 MHz – Automatic transducer recognition

  • Linear
  • Convex
  • Microconvex

Duo Probe: multi-frequency probe with dual transducers for two simultaneous scans *custom made probe

Scan depth: 2-31 cm depending on the probe used.

Pulsed Wave Doppler (PWD)

  • PRF values: 1-10 kHz
  • wall filter settings: 16 steps (2%-20% PRF)

Focusing

  • transmit: variable, 8 zones
  • receive: point to point, dynamic

Automatic Image Optimization

  • B-image gain
  • B-image dynamic range
  • B-image TGC sliders

Image Processing - controls

  • lines density control for better resolution
  • TGC Control
  • dynamic range
  • overall gain control
  • M – mode sweep speed control
  • acoustic power control
  • variable frame averaging
  • brightness, contrast
  • advanced gamma control, fixed and custom curves
  • scan direction, rotation, up-down controls
  • negative / positive control
  • bi-linear interpolation
  • echo enhancement control
  • noise rejection function
  • speckle reduction and structure improvement PureView, NeatView, QuickView

DICOM

  • Verification SCU
  • Modality Worklist (MWL) SCU
  • Modality Performed Procedure Step (MPPS) SCU
  • Store SCU (images, video)
  • Print SCU (grayscale, color)

For more information see Echo Wave II Software DICOM Conformance Statement

Functions

  • mouse / trackball / keyboard operation

Image and video save / load:

  • AVI
  • MP4
  • JPG
  • BMP
  • PNG
  • TIF
  • XLSX
  • DCM (DICOM uncompressed)
  • DCM (DICOM-JPEG RGB/YBR)
  • DCM (DICOM-JPEG RGB/YBR Video)
  • TPD (Telemed Picture Data)
  • TVD (Telemed Video Data)
  • unlimited programmable presets for clinically specific imaging
  • vascular puncture guidelines
  • biopsy guidelines
  • brachytherapy/biopsy grids
  • anatomical icons with transducer position indicator
  • direct e-mail sending with image or video attachment via Internet
  • DICOM file push to server
  • printing on system printer
  • TV output via computer display adapter
  • multi-monitor support
  • full screen and window mode
  • LB-2 keyboard (optional) support

User Interface

  • the set of predefined skin schemes for software interface
  • the set of predefined buttons images

Multilanguage support, languages:

  • Chinese
  • English
  • French
  • German
  • Italian
  • Korean
  • Lithuanian
  • Magyar
  • Polish
  • Romanian
  • Russian
  • Spanish
  • B+M, B+PW/CW layout position, size
  • ultrasound area size
  • font size

General Measurements & Calculations

B and Color Doppler mode general measurements and calculations:

  • Distance
  • Length (method: 1 trace)
  • Area, Circumference (methods: 1 ellipse, 1 trace, 1 distance)
  • Volume (methods: 1 distance, 2 distances, 3 distances, 1 ellipse)
  • Angle (methods: 2 distances, 3 distances)
  • Stenosis % (methods: 2 distances, 2 ellipse or trace areas)
  • A/B Ratio (methods: 2 distances, 2 ellipse or trace areas, 2 ellipse or trace circumferences)

M mode general measurements and calculations:

  • Distance, Time, Velocity
  • Heart Rate (methods: 1 beat, 2 beats)
  • Stenosis % (method: 2 distances)
  • A/B Ratio (methods: 2 distances, 2 times, 2 velocities)

PW Mode Human Cardiology Measurements and Calculations

  • Left Ventricle: LVOT Diam, LVOT VTI, LVOT Vmax, SV (Stroke Volume), SI (Stroke Volume Index), CO (Cardiac Output), CI (Cardiac Index), dP:dt (Delta Pressure : Delta Time), MPI (Left Ventricle Myocardial Performance Index)
  • Mitral Valve: MVA(PHT) (Mitral Valve Area using Pressure Half Time), MVA using Continuity Equation (LVOT Diam, MV VTI; LVOT Diam, MV Vmax), dP:dt, E/A ratio
  • Aortic Valve: AVA (Aortic Valve Area) using Continuity Equation (LVOT Diam, AV VTI; LVOT Diam, AV Vmax), AVI (Aortic Valve Index), DPI (Dimensionless Performance Index), AV PHT (Aortic Valve Pressure Half Time)
  • Right Ventricle: RVOT Diam, RVOT VTI, RVOT Vmax, dP:dt, RV MPI (Right Ventricle Myocardial Performance Index), MPAP (Mean Pulmonary Artery Pressure)
  • Tricuspid Valve: TVA (Tricuspid Valve Area) using Continuity Equation (RVOT Diam, TV VTI; RVOT Diam, TV Vmax); TV E/A ratio, TV PHT
  • Pulmonic Valve: PVA (Pulmonic Valve Area) using Continuity Equation (RVOT Diam, PV VTI; RVOT Diam, PV Vmax), PVI (Pulmonic Valve Index), DPI (Dimensionless Performance Index), PV PHT (Pulmonic Valve Pressure Half Time)
  • Pulmonary Vein: Hepatic Vein
  • Shunts: Qp:Qs (Pulmonary-Systemic Flow Ratio)

Human Measurements and Calculations Package

Human General

  • Measurements: the same as general measurements of different modes (B, M, PW)
  • Calculations: BSA via Height and Weight, BSA via Weight
  • PW Mode calculations: HR, SV using Flow Area, SV using Flow Diameter, SI, CO, CI, Area calculation using Continuity Equation (methods: Area and VTI, Area and Velocity, Diameter and VTI, Diameter and Velocity, Velocity Ratio (S/D, D/S), dP:dt, Flow Volume (methods: Diameter, Area), PHT, MVA

Human Musculoskeletal

  • Hip Angles (α, β), Femoral Head Coverage (FHC)

Human Obstetrics / Gynecology (OB / GYN)

  • Measurements: LMP (entered or from calendar), AC, BPD, FL, HC, FTA, AAPD, ATD, TAPD, TTD, CRL, GS, HL, TL, UL, OFD, BOD, Cereb, Clav, Rad, AFI, FHR, NT
  • Doppler mode measurements: Umbilical Artery (UA): RI, PI, PSV, EDV; Middle Cerebral Artery (MCA): RI, PI, PSV; Ductus Arteriosus (DA): Diam, PSV; Main Pulmonary Artery (MPA): Diam, PSV; Uterine Artery (UtA): RI, PI
  • Doppler mode calculations: Umbilical Artery (UA): PSV/EDV; CPR
  • Estimated date of birth (EDD) calculations: EDD(LMP), EDD(GA), EDD(AUA)
  • Ratios: FL / AC, FL / HC, FL / BPD, HC / AC, CI
  • Estimated Fetal Weight (EFW) calculations: EFW(AC), EFW(AC,BPD), EFW(AC,FL), EFW(AC,HC), EFW(AC,HC,BPD), EFW(FL), EFW(AC,FL,HC), EFW(AC,BPD,FL), EFW(AC,BPD,FL,HC), EFW(BPD,FL,FTA), EFW(BPD,ATD), EFW(BPD,TTD), EFW(BPD,TAPD,TTD), EFW(BPD,FL,TAPD,TTD)
  • Selected EFW values are used for calculation of Average EFW
  • Gestational Age (GA) calculations: GA(AC), GA(BPD), GA(CRL), GA(FL), GA(GS), GA(HC), GA(HL), GA(OFD), GA(TL), GA(UL), GA(HC/AC), GA(FTA),GA(ATD), GA(TAPD), GA(TTD), GA(BOD), GA(Cereb), GA(Clav)
  • Fetal Growth estimation (trending): AC(GA), BPD(GA), CRL(GA), FL(GA), GS(GA), HC(GA), HL(GA), OFD(GA), TL(GA), UL(GA), [FL/AC](GA), [FL/HC](GA), [HC/AC](GA), EFW(GA), AAPD(GA), ATD(GA), TAPD(GA), TTD(GA), BOD(GA), Cereb(GA), Rad(GA), Clav(GA), AFI(GA), FHR(GA), NT(CRL)
  • Doppler mode Fetal Growth estimation (trending): UA_RI(GA), UA_PI(GA), UA_RATIO_S_D(GA), MCA_RI(GA), MCA_PI(GA), MCA_PSV(GA), CPR(GA), DA_DIAM(GA), DA_PSV(GA), MPA_DIAM(GA), MPA_PSV(GA), UTA_RI(GA), UTA_PI(GA)
  • Selected Growth Tables are visualized as Fetal Growth Curves
  • Software supports unlimited number of user-defined Growth Tables

Human Gynecology (GYN)

  • Measurements: length, height, width of uterus, cervix, ovaries, renals, follicles
  • Calculations: volumes of uterus, cervix, ovaries, renals, follicles

Human Abdominal

  • Liver: Volume (CC, AP, LL diameters)
  • Gallbladder: Volume, Wall Thickness, Extrahepatic Bile Duct (EBD), Common Bile Duct (CBD), Common Hepatic Duct (CHD)
  • Pancreas: Head Diameter, Body Diameter, Tail Diameter, Pancreatic Duct Head, Pancreatic Duct Body
  • Spleen: Volume (length, width, thickness)
  • Gastrointestinal Tract: Appendix Wall Thickness, Appendix Diameter, Bowel Wall Thickness (at Stomach, Small Bowel, Large Bowel)
  • Urinary Bladder: Volume (length, height, width)
  • Right / Left Kidney: Volume (length, height, width), Pelvis Diameter

Human Urology

  • Measurements: length, height, width of kidneys, bladder, prostate, testes
  • Calculations: volumes of kidneys, bladder, prostate, testes; RUV (Residual Urine Volume); PSAD (PSA Density)

Human Endocrinology

  • Measurements: length, width, thickness of thyroid lobes
  • Calculations: volumes thyroid lobes; volume of thyroid

Human Vascular

  • Distance and area -based stenosis calculations at left (right) Subclavian, CCA (Common Carotid Artery), Bulb, ICA (Internal Carotid Artery), ECA (External Carotid Artery), Vertebral vessels at proximal, middle, distal locations
  • PSV/EDV (Peak Systole Velocity / End Diastole Velocity) ratios for each vessel and location
  • Ratios of velocities ICA PSV/CCA PSV, ICA EDV/CCA EDV, ICA PSV/CCA EDV, ECA PSV/CCA PSV, ECA EDV/CCA EDV, ECA PSV/CCA EDV at Rt. (Lt.) Prox. (Mid., Dist.) locations

Human Cardiology

  • Software supports the following measurements of Left Ventricle, Aortic Valve, Left Atrial: IVSd (Interventricular Septal Thickness, diastole), LVIDd (Left Ventricle Internal Diameter, diastole), LVPWd (Left Ventricle Posterior Wall Thickness, diastole), AOd (Aortic Root Dimension, diastole), IVSs (Interventricular Septal Thickness, systole), LVIDs (Left Ventricle Internal Diameter, systole), LVPWs (Left Ventricle Posterior Wall Thickness, systole), LADs (Left Atrial Dimension, systole).
  • Calculations: HR (Heart Rate), BSA (Body surface Area), Left ventricle volume (methods: Cubed, Teichholz, Gibson, Simpson’s LVAM-LVAP, Simpson’s single plane, Simpson’s biplane, Bullet, Ellipsoid single plane, Ellipsoid biplane), SV (Stroke Volume), SI (Stroke Volume Index), EF (Ejection Fraction), CO (Cardiac Output), CI (Cardiac Index), STIVS (Interventricular Shortening), FS (Fractional Shortening), STPW (Posterior Wall Shortening), LVM (Left Ventricle Cardiac Mass), CMI (Cardiac Mass Index), LA/AO Ratio

Veterinary Calculations Package

Canine OB

  • Measurements: GS, CRL, HD, BD
  • Gestational Age (GA) calculations: GA(BD), GA(CRL), GA(GS), GA(HD)

Feline OB

  • Measurements: HD, BD
  • Gestational Age (GA) calculations: GA(BD), GA(HD)

Ovine OB

  • Measurements: CRL
  • Gestational Age (GA) calculations: GA(CRL)

Bovine OB

  • Measurements: BD, CRL, HD, UD
  • Gestational Age (GA) calculations: GA(BD), GA(CRL), GA(HD), GA(UD)

Equine OB

  • Measurements: AOD, BPD, CRL, EOD, GS
  • Gestational Age (GA) calculations:
  • GA(AOD), GA(BPD), GA(CRL), GA(EOD), GA(GS)

Lama OB

  • Measurements: BPD
  • Gestational Age (GA) calculations: GA(BPD)

Goat OB

  • Measurements: BPD
  • Gestational Age (GA) calculations: GA(BPD) for different species

Animal Cardiology

  • Left Ventricle, Aortic Valve, Left Atrial measurements: IVSd, LVIDd, LVPWd, AOd, IVSs, LVIDs, LVPWs, LADs, ET
  • Calculations: HR, LV volume (Cubed, Teichholz, Gibson), SV, EF, CO, STIVS, FS, STPW, LA/AO, VCF

Reporting

The software includes the reporting and archiving program for data, images, and videos, with creation of the patient file, storage, filing, printing, sending the report by direct-email.
Programming by the operator of the report template with patient data, diagnostic images, measurements and calculations, curves and diagrams, comments, templates, etc.

Power supply

  • directly from USB port (if connected to USB 3.0)
  • external power supply, 100-240V AC, 50-60 Hz (if connected to USB 2.0)

Size & Weight

  • MicrUs EXT-1H:
    aluminium enclosure
    dimensions W x D x H, mm: 106 x 105 x 21
    weight, kg: 0.26

Ultrasound software

  • Echo Wave II scanning software / Echo Wave II touch GUI (Windows 32/64 bit)
  • Echo Wave A (Android)

Free downloadable updates.

Research & Development tools

Hardware tools:

  • I/O Module – optional modules for synchronizing the scanner with other signals or instruments such as ECG, EMG, EEG.

Software tools:

  • SDK – Software Developement Kit (windows/android) (available with agreement).
  • Real-time imaging for the research (DLL) – allows to call TELEMED SDK functions to perform real-time ultrasound image data acquisition and imaging from the other programming platforms such as MATLAB, Python etc.
  • MicrUs synchronisation utilities – utility for configuring MicrUs synchronisation port

Recommended configuration

  • Windows® based computer
  • HD/Full HD screen resolution, IPS technology
  • CPU i5/i7/i9 2.0 GHz or faster
  • 8 Gb RAM or more
  • 256 Gb internal Solid State Drive (SSD)
  • ArtUs: USB 3.0, other systems: USB 2.0/USB 3.0
  • Windows® 8/10/11 (all versions 32/64-bit)

Customer Care & Warranty

Remote technical support in real time.

Warranty:

  • MicrUs Beamformer: 2 years
  • Probes: 1 year

MicrUs EXT-1H include:

  • MicrUs EXT-1H beamformer
  • ultrasound transducer (optional)
  • Mini-B to Type-A USB 2.0 cable
  • 100~240 VAC, 50~60 Hz power supply (EN60601-1)
  • software, assembly and set-up manual, operation manual (supplied on USB memory stick)

Models

MicrUs EXT-1H: one probe port

Imaging Modes

  • B
  • B+M
  • M
  • Pulsed Wave Doppler (PWD)
  • B+PWD (Duplex)

Connectivity

  • USB 2.0 & 3.0

Transducers

Multi-frequency transducers from 2 to 15.0 MHz – Automatic transducer recognition

  • Linear
  • Convex
  • Microconvex

Scan depth: 2-28 cm depending on the probe used.

Pulsed Wave Doppler (PWD)

  • PRF values: 1-10 kHz
  • wall filter settings: 16 steps (2%-20% PRF)

Focusing

  • transmit: variable, 8 zones
  • receive: point to point, dynamic

Automatic Image Optimization

  • B-image gain
  • B-image dynamic range
  • B-image TGC sliders

Image Processing - controls

  • lines density control for better resolution
  • TGC control
  • dynamic range
  • overall gain control
  • M – mode sweep speed control
  • acoustic power control
  • variable frame averaging
  • gamma, brightness, contrast control
  • scan direction control
  • negative / positive control
  • bi-linear interpolation
  • echo enhancement control
  • noise rejection function
  • speckle reduction and structure improvement
  • 16 color maps

DICOM

  • Verification SCU
  • Modality Worklist (MWL) SCU
  • Modality Performed Procedure Step (MPPS) SCU
  • Store SCU (images, video)
  • Print SCU (grayscale, color)

For more information see Echo Wave II Software DICOM Conformance Statement

Functions

  • touch screen operation
  • unlimited programmable presets for clinically specific imaging
  • image and video save:
  • JPG
  • MP4

User interface

  • portrait / landscape orientation
  • basic / all scanning controls mode
  • multilanguage support, languages:
  • English
  • Lithuanian
  • Russian
  • Ukrainian

General Measurements & Calculations

B mode:

  • Distance
  • Area
  • Perimeter
  • Volume using ellipse

M mode:

  • Distance
  • Time
  • Velocity
  • Heart Rate using 2 beats

PW mode:

One-point PW measurements and calculations

  • Velocity
  • Pressure Gradient (PG)

Two-points PW measurements and calculations

  • Velocities difference
  • Pressure Gradients (PG) difference
  • Time interval
  • Acceleration
  • Resistivity Index (RI)
  • Heart Rate using 2 beats

Reporting

The software includes the reporting and archiving program for data, images, and videos, with creation of the patient file, storage, filing, printing, sending the report by direct-email.
Programming by the operator of the report template with patient data, diagnostic images, measurements and calculations, curves and diagrams, comments, templates, etc.

Power supply

  • directly from USB-C port (optional cable)
  • Android mobile device battery run time: up to 2 hours

Size & Weight

  • MicrUs EXT-1H:
    aluminium enclosure
    dimensions W x D x H, mm: 106 x 105 x 21
    weight, kg: 0.26

Ultrasound software

  • Echo Wave A (Android)

Free downloadable updates.

Research and Development Tools

Software tools:

  • SDK – Software Developement Kit (windows/android) (available with agreement).
  • Real-time imaging for the research (DLL) – allows to call TELEMED SDK functions to perform real-time ultrasound image data acquisition and imaging from the other programming platforms such as MATLAB, Python etc.

Recommended Mobile Device Configuration

System requirements:

  • Mobile phone or tablet with USB OTG (USB On-The-Go) port (Type-C or Micro USB).
  • Android operating system (versions from 9.0 to 13.0).
  • OpenGL ES 3.2 support.
  • 5-inch 1080×1920 pixels or larger display.
  • Installed “Echo Wave A” software.
  • Connected MicrUs EXT-1H ultrasound scanner with supported probe or MicrUs Pro series USB probe.

 Recommended mobile device characteristics

  • USB port: USB Type-C (USB-C) with OTG (USB On-The-Go) support.
  • CPU: >= 8 cores, >= 2 GHz each core; 64-bit ARMv8 architecture.
  • RAM: >= 4 GB, read performance > 1.5 GB/s, write performance > 1 GB/s.
  • Disk: read performance > 350 MB/s, write performance > 350 MB/s.
  • Battery: capacity as large as possible (e.g., 4000-6000 mAh).
  • Display: 6-inch OLED, 16 million colors, 1080×2340 resolution.
  • Android operating system: Android 9.0 (Pie).
  • OpenGL ES 3.2 support.
  • It is recommended to use mobile device with improved resistance to water and dust.

Customer Care & Warranty

Remote technical support in real time.

Warranty:

  • MicrUs Beamformer: 2 years
  • Probes: 1 year

MicrUs EXT-1H includes:

  • MicrUs EXT-1H beamformer
  • ultrasound transducer (optional)
  • Mini-B to Type-A USB 2.0 cable
  • 100~240 VAC, 50~60 Hz power supply (EN60601-1)
  • software, assembly and set-up manual, operation manual (supplied on USB memory stick)

Related Ultrasound Scanners

Micrus Pro

HANDHELD ULTRASOUND SCANNER

MicrUs Pro is a handheld ultrasound scanner that provides clear, high-definition images with your smartphone, tablet or PC (Windows/Android).

SmartUs

HIGH-END ULTRASOUND SCANNER

Portable ultrasound scanner with continuous doppler technology. Lightweight and compact, it ensures reliability, accuracy and rapid results to provide the best quality in health care.

ArtUs

HIGH-END ULTRASOUND SCANNER

The ultrasound scanner chosen by the best universities and healthcare professionals looking for superior performance, high frame-ratecompactness and a wide range of multifrequency probes.
